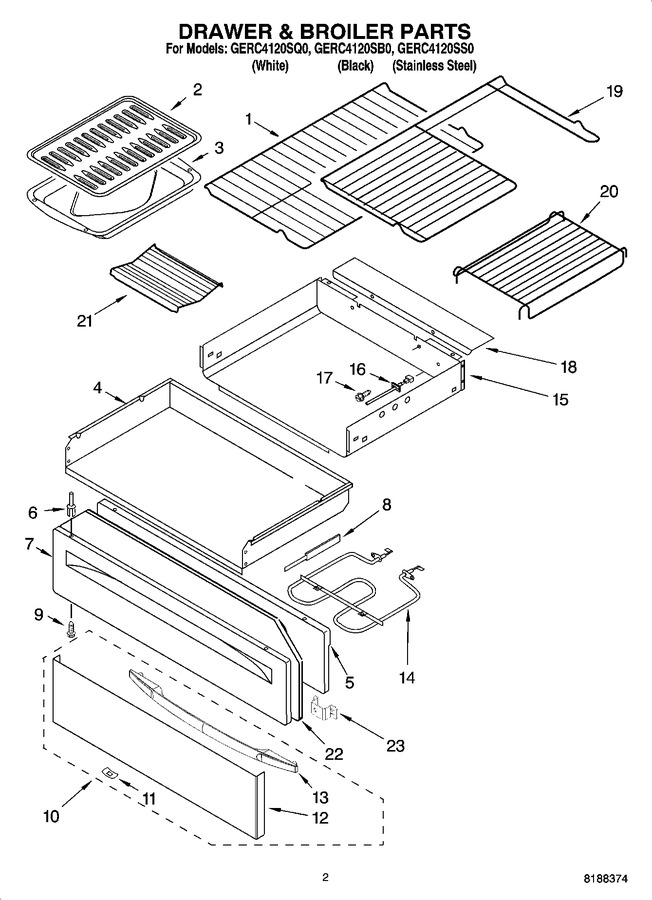

SELECT A DIAGRAM

01 - Cooktop Parts


02 - Drawer & Broiler Parts


03 - Chassis Parts


04 - Control Panel Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 42.16
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 82.63
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 279.38
4	8272610		Drawer, Storage				$ 141.41
5	8272609		Panel, Inner				$ 36.52
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 9.49
6	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 9.60
7	9762397		Panel, Drawer Front (black)		Appelez-nous	-
7	9762395		Panel, Drawer Front (white)		Appelez-nous	-
8	9761929		Rail, Drawer (left Hand)				$ 60.25
8	9761930		Rail, Drawer (right Hand)				$ 44.45
9	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
11	WP9781235		Clip   (Replaces: 9781235)				$ 10.76
12	9755798		Panel, Stainless		Appelez-nous	-
13	9761981		Handle, Drawer		Appelez-nous	-
14	9758520		Element, Warming		Appelez-nous	-
15	8274153		Enclosure, Drwr		Appelez-nous	-
16	WP8274149		Sensor   (Replaces: 8274149)			Immediately	$ 172.85
17	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 6.47
18	8272977		Heat Shield, Drawer		Appelez-nous	-
19	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 136.38
20	WP8274022		Rack, Insert   (Replaces: 8274022)				$ 123.77
21	3181534		Rack, Roasting		Appelez-nous	-
22	8524234		Insulation		Appelez-nous	-
23	W10010830		Bracket, Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
