01 - Cooktop Parts
02 - Drawer & Broiler Parts
03 - Chassis Parts

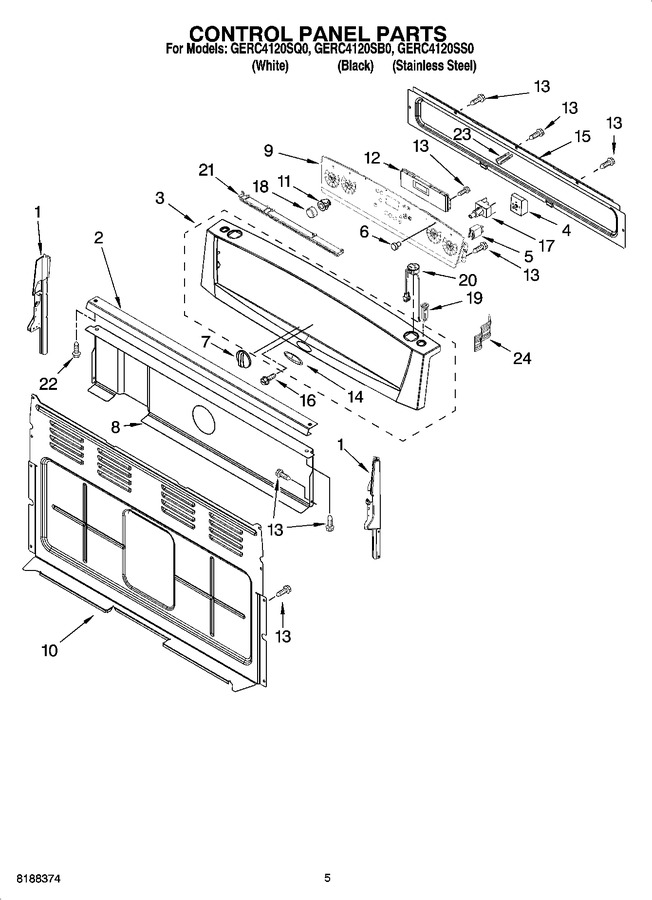

04 - Control Panel Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10009040) |
|
$ 36.39 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10009050) |
|
$ 52.14 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10009080) |
|
$ 131.85 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10009090) |
|
$ 36.40 | |||||
| 2 | 9762095 | Bracket, Console |
|
- | |||||
| 3 | 9763298 | Panel, Control (black) |
|
- | |||||
| 3 | 9763296 | Panel, Control (universal Silver) |
|
$ 143.45 | |||||
| 3 | 9763297 | Panel, Control (white) |
|
- | |||||
| 4 | WP9758060 | Switch, Infinite (right Front) (Replaces: 9758060) |
|
Immediately | $ 74.82 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | 9758129 | Knob, Infinite (4) (black) |
|
$ 23.80 | |||||
| 7 | 9757132 | Knob, Infinite (4) (white) |
|
$ 106.47 | |||||
| 8 | 8523280 | Shield, Heat |
|
- | |||||
| 9 | 9763550 | Glss Swtch Membrne (white) |
|
$ 269.96 | |||||
| 9 | 9763551 | Glss Swtch Membrne (black) |
|
$ 244.29 | |||||
| 10 | 9756999 | Cover, Rear |
|
- | |||||
| 11 | 9757489 | Bezel, Keep Warm (white) |
|
- | |||||
| 11 | 9758489 | Bezel, Keep Warm (black) |
|
- | |||||
| 12 | 9763050 | Control, Range |
|
$ 372.44 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 14 | 9757613 | Nameplate |
|
$ 121.14 | |||||
| 15 | 9756366 | Cover, Rear (console) |
|
- | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 17 | WP8272820 | Switch (Replaces: 8272820) |
|
$ 153.35 | |||||
| 18 | 9757492 | Button (white) |
|
$ 82.30 | |||||
| 18 | 9758491 | Button (black) |
|
$ 16.92 | |||||
| 19 | WP9757601 | Breaker, 15amp (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 19 | WP9757602 | Breaker, 15amp (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 19 | WP9757604 | Breaker, 15amp (architect Grey) (Replaces: 9757604) |
|
Immediately | $ 9.85 | ||||
| 20 | 9758889 | Receptacle (white) |
|
$ 51.42 | |||||
| 20 | W10861164 | Receptacle (architect Grey) (Replaces: 9758892) |
|
Immediately | $ 16.62 | ||||
| 20 | W10861164 | Receptacle (black) (Replaces: 9758890) |
|
Immediately | $ 16.62 | ||||
| 21 | 9757358 | Reflector, Light |
|
- | |||||
| 22 | 3196166 | Screw (white) |
|
$ 6.31 | |||||
| 23 | 9757490 | Support, Glass |
|
- | |||||
| 24 | W11209404 | Cnnctr, Cable Flex (Replaces: 9762426) |
|
$ 102.00 |
