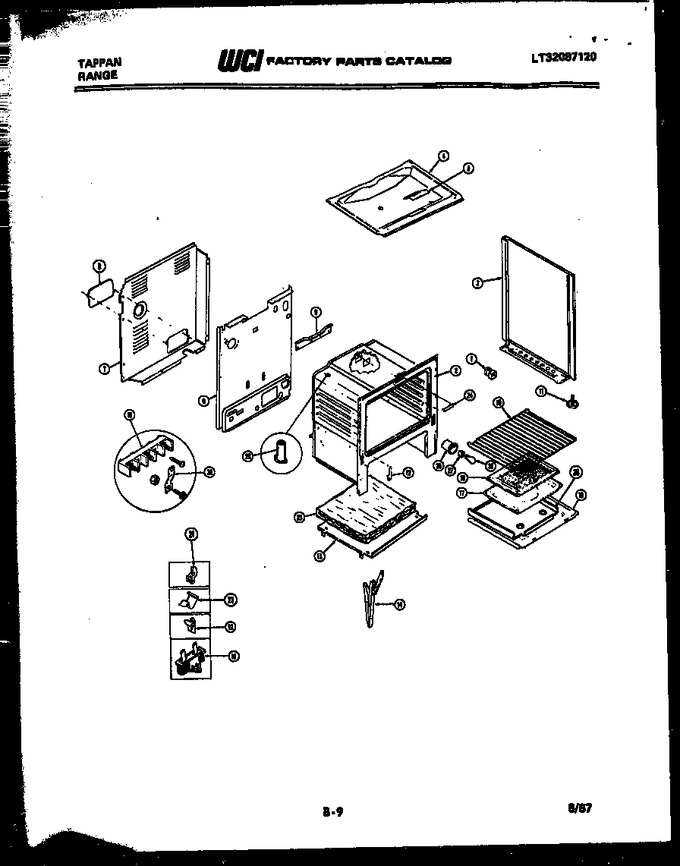

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	665T188P02		Spacer-bdysde (8)		Appelez-nous	-
3	3131257		Pnl-bdysde-lh-wh		Appelez-nous	-
3	3131227		Pnl-bdysde-rh-wh		Appelez-nous	-
4	3051109		Burner Box		Appelez-nous	-
5	3131101		Cover, Plate		Appelez-nous	-
6	3131567		Back, Main		Appelez-nous	-
7	3051400		Shield-lwr Wall		Appelez-nous	-
8	3051501		Cvr-lwr Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	3051220		Rack, Oven (2)		Appelez-nous	-
11	636M004P01		Screw, Level (4)		Appelez-nous	-
12	3131570		Cvr-hnge Cutout 2				$ 7.35
13	3051398		Shield-wool Lwr		Appelez-nous	-
14	3131569		Chnl Dr Hnge (2)		Appelez-nous	-
15	3051104		Bottom, Oven		Appelez-nous	-
16	3051147		Fuse-therm. Cutout		Appelez-nous	-
17	539T010F01-86		Broiler Pan		Appelez-nous	-
18	3131356		Insert-brlr Pan		Appelez-nous	-
19	709T031P01		Terminal Block		Appelez-nous	-
20	711T048P01		Ground Strap		Appelez-nous	-
21	145T025P01		Clip-therm Bulb (2)				$ 1.76
22	3051162		Glide-drawer (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	3131548		Cover Frnt Main		Appelez-nous	-
25	3051390		Insul-btm		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	662T042P01		Socket-ov Lt		Appelez-nous	-
28	3051417		Btm-ovn Removable		Appelez-nous	-
29	3051343		Tube-ov Lt		Appelez-nous	-
30	374T018F05		Bulb-ov. Lt.		Appelez-nous	-
27A	3131201		Insul-wrap (non-illustrated)		Appelez-nous	-
27B	3131200		Insul-back (non-illustrated)		Appelez-nous	-
27C	3131114		Bumpr-frnt Frame (2) (non-illustrated)		Appelez-nous	-
27D	636T163P01		Screw-hnge Mt (6) (non-illustrated)		Appelez-nous	-
27E	479T069P41		Nut-hex Brass (6) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
