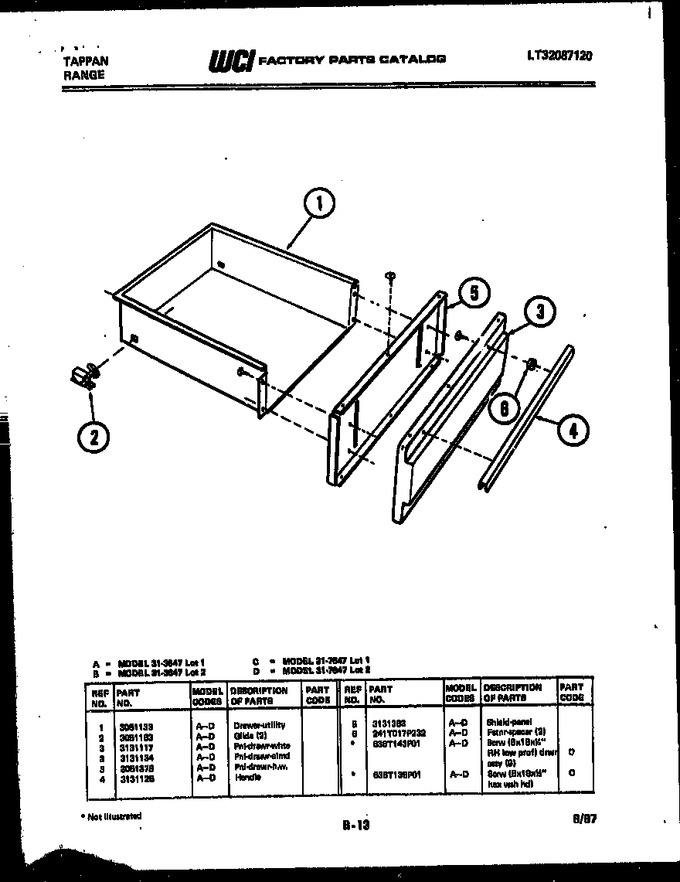

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051133 | Drawer, Utility |
|
- | |||||
| 2 | 3051163 | Glide (2) |
|
Immediately | $ 19.41 | ||||
| 3 | 3131117 | Pnl-drawr -whte |
|
- | |||||
| 4 | 3131125 | Handle |
|
- | |||||
| 5 | 3131383 | Shield-panel |
|
- | |||||
| 6 | 241T017P232 | Fstnr-spacer (2) |
|
- | |||||
| *53782 | 636T143P01 | Screw |
|
- | |||||
| *53783 | 636T135P01 | Scrw (8 X 18 X 1/2`` Hex Wsh Hd) |
|
- |
