SELECT A DIAGRAM

01 - Control Panel Parts

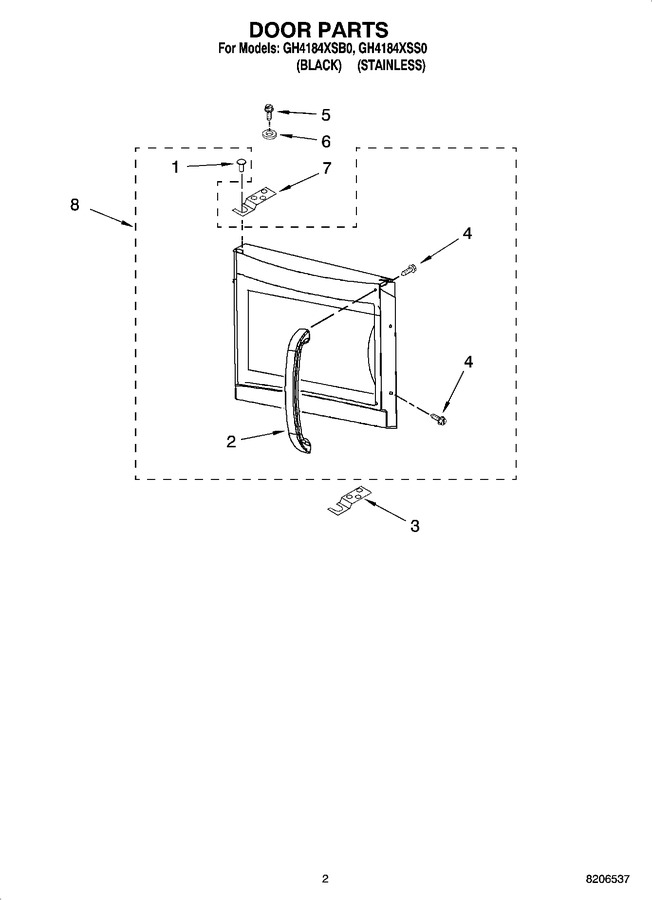

02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8184922		Pivot, Door		Appelez-nous	-
2	W10246505		Handle, Door (black)   (Replaces: 8205829)				$ 172.34
2	8206176		Handle, Door (stainless)		Appelez-nous	-
3	8204678		Lower Hinge		Appelez-nous	-
4	8169479		Screw				$ 6.26
5	8169480		Screw   (Replaces: 8204690)				$ 11.15
6	WP8533914		Washer   (Replaces: 8204691)			Immediately	$ 4.04
7	8204679		Upper Hinge		Appelez-nous	-
8	8206461		Complete Door (black)		Appelez-nous	-
8	8206462		Complete Door (stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
