01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts

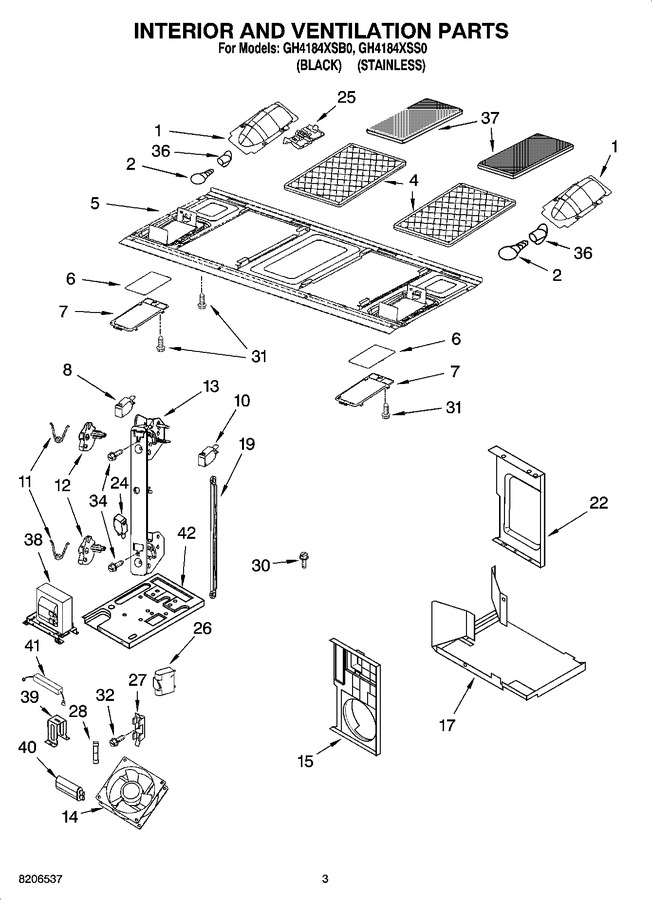

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205096		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp   (Replaces: 8183993)			Immediately	$ 6.61
4	W10113040A		Filter, Grease   (Replaces: 8184001)			Immediately	$ 21.43
5	8205366		Plate, Bottom		Appelez-nous	-
6	8184141		Glass, Lamp				$ 34.66
7	8184889		Holder, Glass		Appelez-nous	-
8	W10211972		Switch, Micro Primary/secondary   (Replaces: 8206345)			Immediately	$ 47.16
10	W10211974		Switch, Micro   (Replaces: 8206352)			Immediately	$ 54.40
11	8169438		Spring, Interlock				$ 10.69
12	8205211		Plate, Cam		Appelez-nous	-
13	8185189		Support, Interlock				$ 36.40
14	8205362		Fan, Dc 12 Volt		Appelez-nous	-
15	8205364		Housing, Fan		Appelez-nous	-
17	8205357		Diffuser, Housing		Appelez-nous	-
19	8185190		Rod-locking Link		Appelez-nous	-
22	8206455		Plate, Side		Appelez-nous	-
24	W10269458		Switch, Micro   (Replaces: 8206347)			Immediately	$ 36.10
25	8184202		Cover, Terminal		Appelez-nous	-
26	8184091		Motor, Capacitor		Appelez-nous	-
27	8184312		Holder, Fuse		Appelez-nous	-
28	W11707984		Fuse   (Replaces: 4393308)			Immediately	$ 41.27
30	8184199		Screw		Appelez-nous	-
31	4393835		Screw				$ 11.83
32	8184200		Screw		Appelez-nous	-
34	8169479		Screw   (Replaces: 8169477)				$ 6.26
36	8169539		Holder, Lamp				$ 54.43
37	8205146A		Filter, Charcoal   (Replaces: 8205146)				$ 21.08
38	8206456		Transformer, H.v.				$ 246.11
39	8206457		Bracket, Capacitor		Appelez-nous	-
40	8206458		Capacitor, H.v.		Appelez-nous	-
41	W11256462		Diode, H.v.   (Replaces: 8184664)			Immediately	$ 29.88
42	8206459		Chassis		Appelez-nous	-
