01 - Control Panel, Literature
02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:

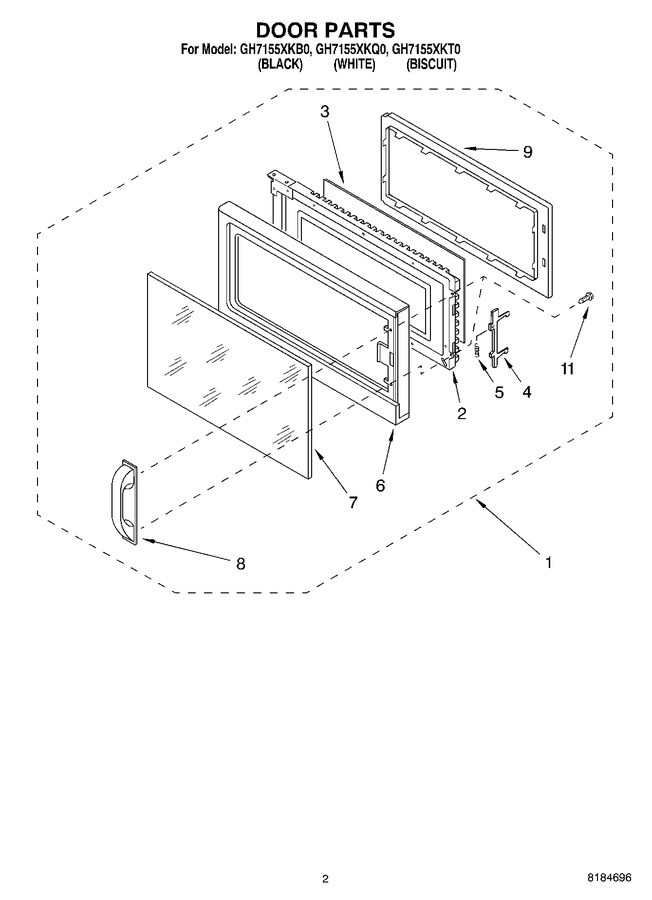

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184697 | Door Assembly (black) |
|
- | |||||
| 1 | 8184698 | Door Assembly (white) |
|
- | |||||
| 1 | 8184699 | Door Assembly (biscuit) |
|
- | |||||
| 2 | 8172110 | Frame, Door (white) |
|
- | |||||
| 2 | 8172112 | Frame, Door (biscuit) |
|
- | |||||
| 2 | 8183975 | Frame, Door (black) |
|
- | |||||
| 3 | WPW10146437 | Tape, Seal (Replaces: 8171844) |
|
$ 79.74 | |||||
| 4 | 8171850 | Latch |
|
- | |||||
| 5 | 8183882 | Spring, Latch |
|
- | |||||
| 6 | 8184703 | Panel, Door (white) |
|
- | |||||
| 6 | 8184704 | Panel, Door (biscuit) |
|
- | |||||
| 6 | 8184702 | Panel, Door (black) |
|
- | |||||
| 7 | 8184706 | Glass, Door (white) |
|
- | |||||
| 7 | 8184707 | Glass, Door (biscuit) |
|
- | |||||
| 7 | 8184705 | Glass, Door (black) |
|
- | |||||
| 8 | 8184662 | Handle, Door (white) |
|
- | |||||
| 8 | 8184700 | Handle, Door (black) |
|
- | |||||
| 8 | 8184701 | Handle, Door (biscuit) |
|
- | |||||
| 9 | 8171846 | Choke, Cover |
|
- | |||||
| 11 | 4358188 | Screw |
|
- |
