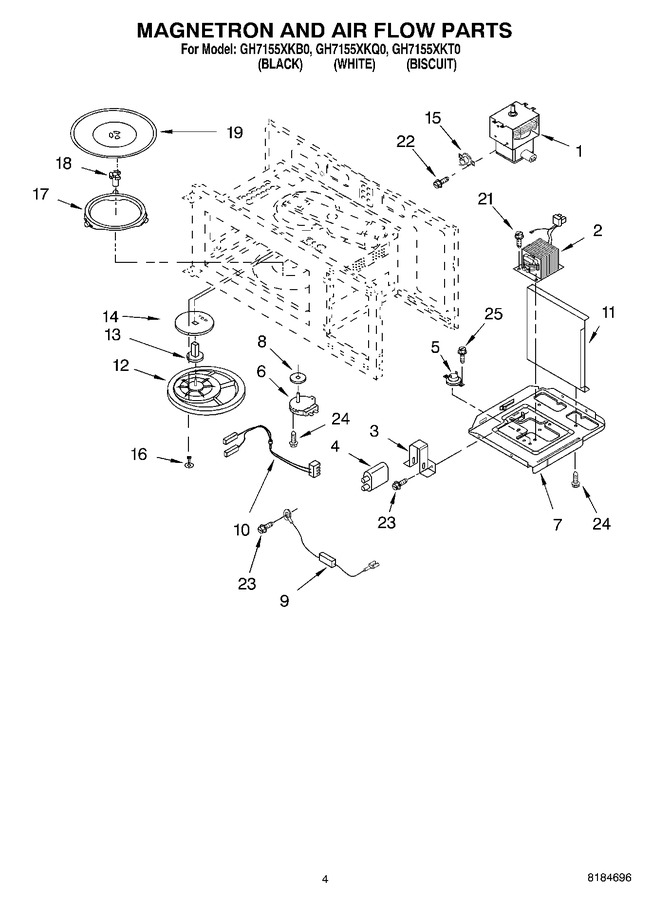

04 - Magnetron And Air Flow


05 - Interior


06 - Latch Board


07 - Ventilation


08 - Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8171874		Magnetron		Appelez-nous	-
2	8183972		H.v. Transformer		Appelez-nous	-
3	4359497		Bracket, H.v.		Appelez-nous	-
4	8183536		Capacitor, H.v.		Appelez-nous	-
5	4158368		Base Thermostat		Appelez-nous	-
6	4359515		Motor, Turntable		Appelez-nous	-
7	8171868		Plate		Appelez-nous	-
8	8171805		Seal, Water		Appelez-nous	-
9	WP8205489		H.v. Diode Cable   (Replaces: 4359502)				$ 58.19
10	4359503		Lead Wire		Appelez-nous	-
11	8171864		Guide		Appelez-nous	-
12	8171869		Cover		Appelez-nous	-
13	8171870		Holder				$ 59.05
14	8171872		Stirrer Fan		Appelez-nous	-
15	4358772		Thermostat		Appelez-nous	-
16	WP4359508		Rivet   (Replaces: 4359508)				$ 8.28
17	4359509		Rotating Ring		Appelez-nous	-
18	4359618		Turntable Shaft		Appelez-nous	-
19	WP8172138		Glass Tray   (Replaces: 8172138)				$ 87.23
21	WP3400094		Screw   (Replaces: 4158747)				$ 7.14
22	8171882		Screw		Appelez-nous	-
23	4344826		Screw   (Replaces: 4358489)				$ 14.31
24	4358188		Screw		Appelez-nous	-
25	4358450		Screw		Appelez-nous	-
