SELECT A DIAGRAM

01 - Door


02 - Control Panel


03 - Cabinet


04 - Latch Board, Literature

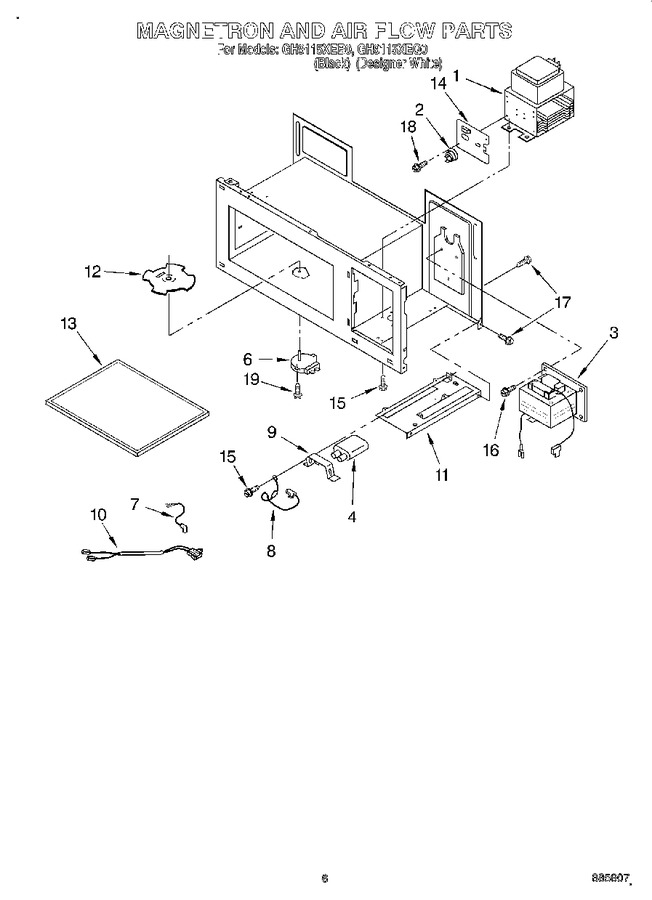

05 - Magnetron And Airflow


06 - Interior


07 - Installation


08 - Plate Chamber Assembly


09 - Interior


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4359002		Magnetron		Appelez-nous	-
2	4358772		Thermostat		Appelez-nous	-
3	4358774		Transformer		Appelez-nous	-
4	4158947		Capacitor		Appelez-nous	-
6	4358777		Motor, Synchronous		Appelez-nous	-
7	4359421		H.v. Cable		Appelez-nous	-
8	4359422		H.v. Diode-cable		Appelez-nous	-
9	4358778		Bracket, H.v.c.		Appelez-nous	-
10	4358780		Lead Wire		Appelez-nous	-
11	4358781		Plate, Bottom		Appelez-nous	-
12	4359447		Stirrer Fan Disk		Appelez-nous	-
13	4158731		Ceramic Plate		Appelez-nous	-
14	4358060		Bracket, Thermostat		Appelez-nous	-
15	4344826		Screw   (Replaces: 4358489)				$ 14.31
16	WP3400094		Screw   (Replaces: 4158747)				$ 7.14
17	4358192		Screw		Appelez-nous	-
18	4358450		Screw		Appelez-nous	-
19	4358188		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
