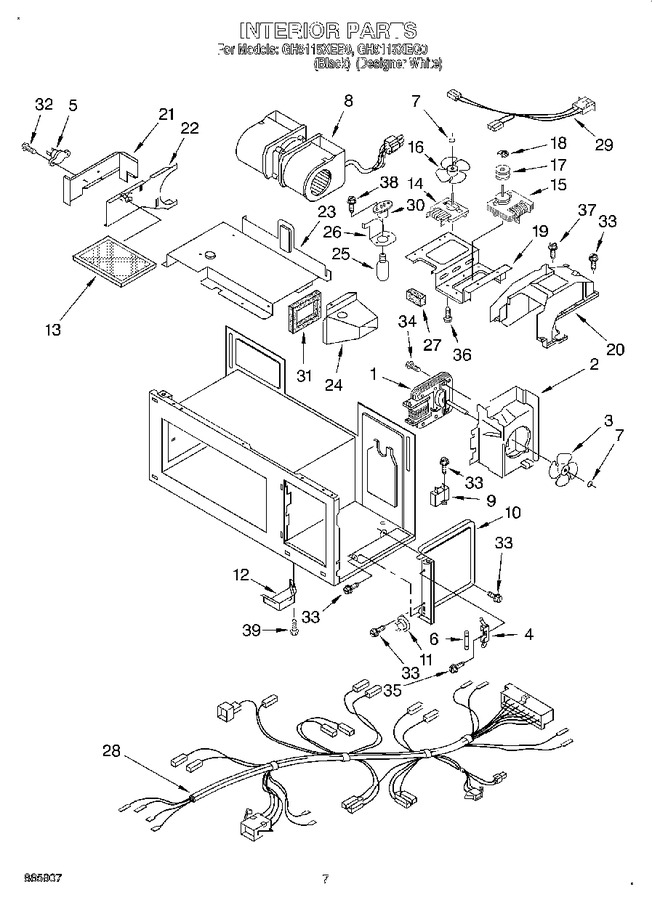

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358784		Motor, Fan				$ 95.50
2	4358564		Guide Suction		Appelez-nous	-
3	4358379		Blower Fan		Appelez-nous	-
4	4358785		Holder, Fuse		Appelez-nous	-
5	4358443		Thermostat		Appelez-nous	-
6	4358263		Fuse		Appelez-nous	-
7	4358055		Push Nut				$ 4.83
8	4358960		Motor, Ventilation				$ 179.50
9	4158376		Motor Condenser		Appelez-nous	-
10	4358536		Guide Air		Appelez-nous	-
11	4158368		Base Thermostat		Appelez-nous	-
12	4358791		Cover, Connector		Appelez-nous	-
13	4359331		Charcoal Filter				$ 15.29
14	4358961		Motor, Tower		Appelez-nous	-
15	4358962		Motor, Circulation		Appelez-nous	-
16	4158758		Propeller		Appelez-nous	-
17	4358963		Pulley, Motor		Appelez-nous	-
18	4358964		E-ring		Appelez-nous	-
19	4358965		Bracket, C-motor		Appelez-nous	-
20	4358966		Air Duct		Appelez-nous	-
21	4359003		Guide, Chamber-a		Appelez-nous	-
22	4358968		Guide, Chamber-b		Appelez-nous	-
23	4358969		Guide, Chamber		Appelez-nous	-
24	4358970		Guide, Air Duct		Appelez-nous	-
25	WPA3073101		Oven Lamp   (Replaces: 4358971)			Immediately	$ 10.90
26	4358972		Cover, Oven Lamp		Appelez-nous	-
27	4158864		Cushion		Appelez-nous	-
28	4358973		Lead Wire		Appelez-nous	-
29	4358980		Lead Wire		Appelez-nous	-
30	4358790		Lamp Holder		Appelez-nous	-
31	4358981		Cushion		Appelez-nous	-
32	4358450		Screw		Appelez-nous	-
33	4358192		Screw		Appelez-nous	-
34	4358190		Screw		Appelez-nous	-
35	4358064		Screw		Appelez-nous	-
36	4344826		Screw   (Replaces: 4358489)				$ 14.31
37	4358381		Screw		Appelez-nous	-
38	4358191		Screw		Appelez-nous	-
39	4358192		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
