SELECT A DIAGRAM
New Model Search:

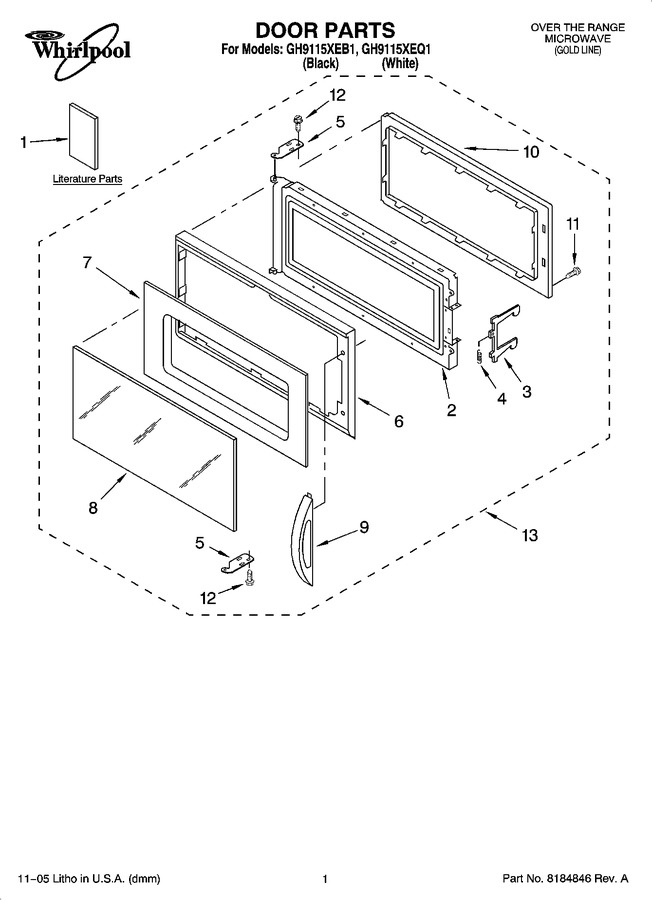

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359575 | Use & Care Guide |
|
- | |||||
| 1 | 4358713 | Cook Book |
|
- | |||||
| 1 | 4359330 | Instructions, Installation |
|
- | |||||
| 1 | 4358518 | Tech Sheet |
|
- | |||||
| 1 | 4359458 | Cook Guide Label |
|
- | |||||
| 2 | 4358937 | Door Frame |
|
- | |||||
| 3 | 4359860 | Latch |
|
$ 7.56 | |||||
| 4 | 8183882 | Spring, Latch |
|
- | |||||
| 5 | 4358820 | Plate, Hinge |
|
- | |||||
| 6 | 4358566 | Panel, Door (white) |
|
- | |||||
| 6 | 4358567 | Panel, Door (black) |
|
- | |||||
| 7 | 4358938 | Baffle, Door |
|
- | |||||
| 8 | 4358939 | Glass, Door (white) |
|
- | |||||
| 8 | 4358942 | Glass, Door (black) |
|
- | |||||
| 9 | 4358548 | Handle, Door (white) |
|
- | |||||
| 9 | 4358549 | Handle, Door (black) |
|
- | |||||
| 10 | 4358943 | Choke Cover |
|
- | |||||
| 11 | 4358479 | Screw (white) |
|
- | |||||
| 11 | W11245710 | Screw (black) (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 12 | 4358067 | Screw |
|
- | |||||
| 13 | 4358936 | Door Assembly (white) |
|
- | |||||
| 13 | 4358940 | Door Assembly (black) |
|
- |
