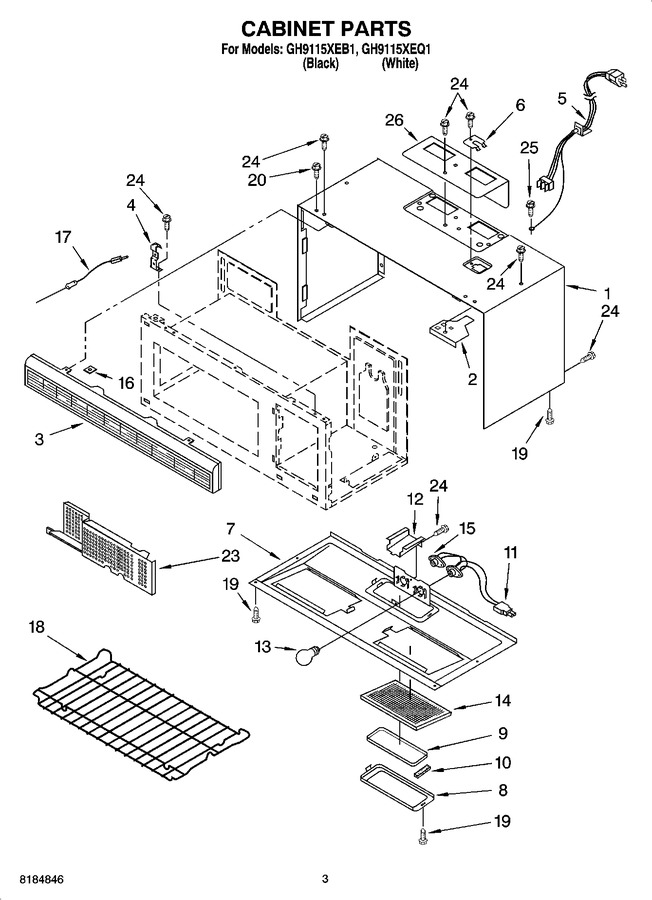

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358925 | Outer Case (white) |
|
- | |||||
| 1 | 4358926 | Outer Case (black) |
|
- | |||||
| 2 | 4358928 | Bracket Mount |
|
- | |||||
| 3 | 4358998 | Grille Vent (black) |
|
- | |||||
| 3 | 4358952 | Grille Vent (white) |
|
- | |||||
| 4 | 4358759 | Bracket, Front |
|
- | |||||
| 5 | 4358760 | Power Cord |
|
- | |||||
| 6 | 4358761 | Cover, Power Cord |
|
- | |||||
| 7 | 4358929 | Base Plate |
|
- | |||||
| 8 | 4358533 | Cover, Glass (white) |
|
- | |||||
| 8 | 4358765 | Cover, Glass (black) |
|
- | |||||
| 9 | 4358953 | Glass, Lamp |
|
- | |||||
| 10 | 4358767 | Cushion, Glass |
|
- | |||||
| 11 | 4358980 | Lead Wire |
|
- | |||||
| 12 | 4358769 | Cover, Wire |
|
- | |||||
| 13 | 8206232A | Oven Lamp (Replaces: 4158344) |
|
Immediately | $ 6.61 | ||||
| 14 | 4358853 | Air Filter |
|
Immediately | $ 16.99 | ||||
| 15 | 4358790 | Lamp Holder |
|
- | |||||
| 16 | 4358816 | Bracket, Grille |
|
- | |||||
| 17 | 4358430 | Temperature Probe |
|
- | |||||
| 18 | 8184847 | Shelf Assembly |
|
- | |||||
| 19 | 4358380 | Screw (white) |
|
$ 11.75 | |||||
| 19 | 4358829 | Screw (black) |
|
- | |||||
| 20 | 4358762 | Screw (black) |
|
$ 7.10 | |||||
| 20 | 4359009 | Screw (white) |
|
- | |||||
| 23 | 4358958 | Bracket, Inlet |
|
- | |||||
| 24 | 4358381 | Screw |
|
- | |||||
| 25 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 26 | 4359377 | Mount, Cabinet |
|
- |
