SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Door


03 - Interior And Ventilation


04 - Air Flow

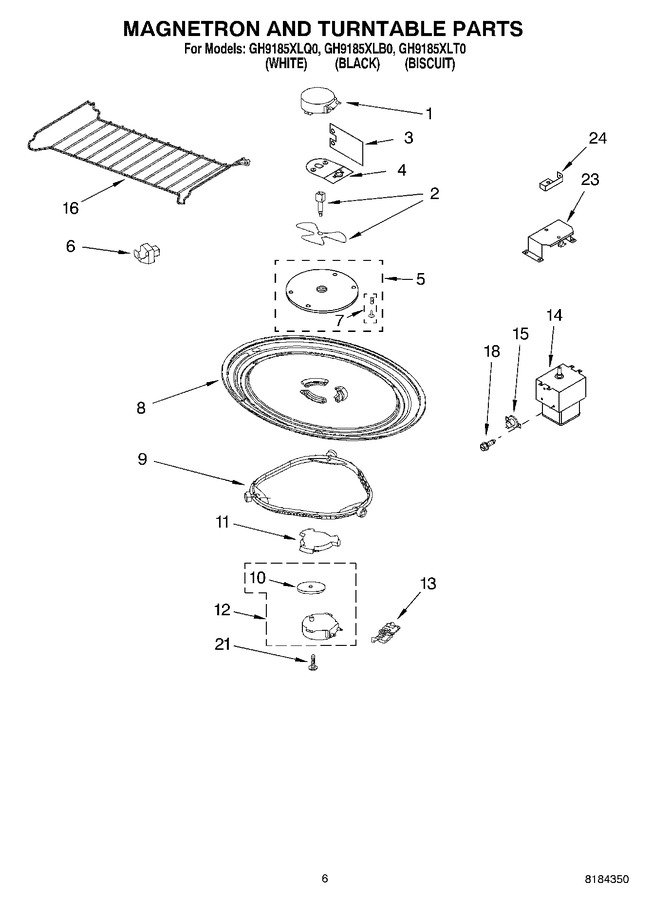

05 - Magnetron And Turntable


06 - Cabinet And Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4393746		Motor, Stirrer		Appelez-nous	-
2	8184108		Stirrer Shaft/blade		Appelez-nous	-
3	8184485		Shield, Nomex		Appelez-nous	-
4	8184585		Thermostat/bracket		Appelez-nous	-
5	8184477		Cover, Inlet Includes Nails And Bushings		Appelez-nous	-
6	W10315274		Hook, Rack (4)   (Replaces: 4393849)				$ 39.68
7	8184549		Nails/bushings (5 Of Each)		Appelez-nous	-
8	4393799		Turntable				$ 82.90
9	W11252182		Ring, Turntable   (Replaces: 8184102)			Immediately	$ 35.60
10	8184109		Spacer, Waterproof				$ 6.26
11	W10435116		Driver, Turntable   (Replaces: 8183949)				$ 29.54
12	W10642989		Motor, Turntable   (Replaces: 8183954)			Immediately	$ 171.39
13	4393756		Cover, Terminal		Appelez-nous	-
14	8206317		Magnetron   (Replaces: 8184139)				$ 318.62
15	8183994		Thermostat				$ 40.07
16	8184052		Rack		Appelez-nous	-
18	4393838		Screw		Appelez-nous	-
21	4393832		Screw				$ 11.55
23	8184586		Thermostat/bracket		Appelez-nous	-
24	8184669		Bracket, Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
