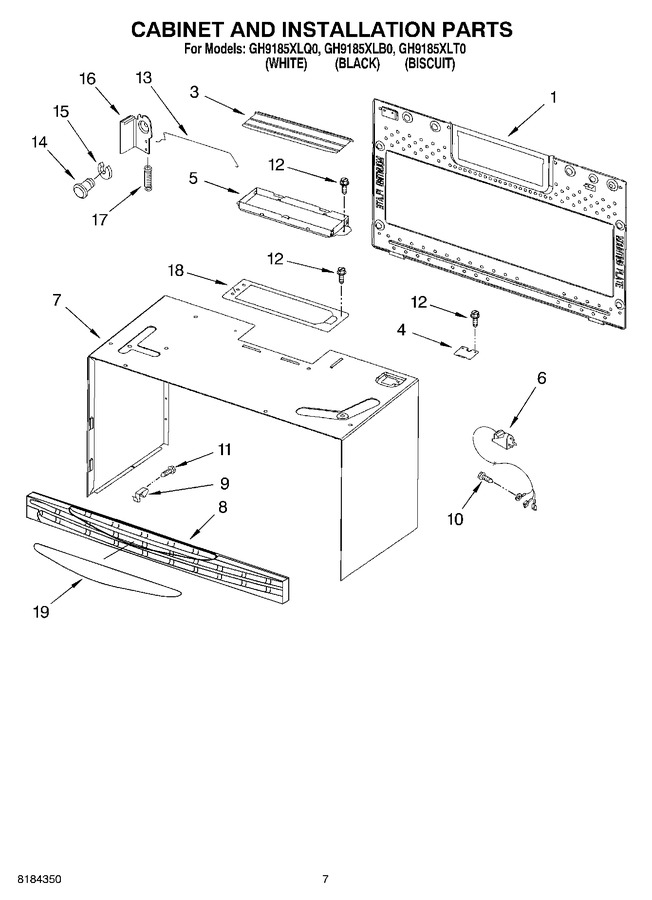

06 - Cabinet And Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184106 | Plate, Mounting |
|
- | |||||
| 3 | W10843943 | Door, Damper (Replaces: 4393713) |
|
Immediately | $ 65.74 | ||||
| 4 | 8184195 | Lid, Power Cord |
|
- | |||||
| 5 | W10843943 | Frame, Damper (Replaces: 4393715) |
|
Immediately | $ 65.74 | ||||
| 6 | 8184101 | Cord, Power |
|
- | |||||
| 7 | 8184159 | Case, Outer (white) |
|
- | |||||
| 7 | 8184161 | Case, Outer (biscuit) |
|
- | |||||
| 7 | 8184162 | Case, Outer (black) |
|
- | |||||
| 8 | 8184671 | Grille, Vent (white) |
|
- | |||||
| 8 | 8184673 | Grille, Vent (black) |
|
- | |||||
| 8 | 8184672 | Grille, Vent (biscuit) |
|
- | |||||
| 9 | W10615742 | Clip, Grille (Replaces: 8184190) |
|
$ 7.38 | |||||
| 10 | 4393836 | Screw |
|
- | |||||
| 11 | 8169475 | Screw |
|
$ 6.64 | |||||
| 12 | 4393472 | Screw |
|
- | |||||
| 13 | 8184135 | Rod |
|
- | |||||
| 14 | 8169319 | Latch, Pivot |
|
- | |||||
| 15 | 8169320 | E-ring |
|
- | |||||
| 16 | 8169321 | Catch |
|
- | |||||
| 17 | 8169374 | Spring |
|
- | |||||
| 18 | 8169697 | Plate, Damper |
|
- | |||||
| 19 | WP8169704 | Plate, Grille (screw, Top Mounting) (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| 19 | 8184674 | Plate, Grille (white) |
|
- | |||||
| 19 | 8184676 | Plate, Grille (black) |
|
- | |||||
| 19 | 8184675 | Plate, Grille (biscuit Miscellaneous) |
|
- | |||||
| 19 | 8169659 | Plate, Grille (installation, Hardware) |
|
- | |||||
| 19 | 8183985 | Plate, Grille (template, Upper) |
|
- | |||||
| 19 | 8183987 | Plate, Grille (template, Wall) |
|
- |
