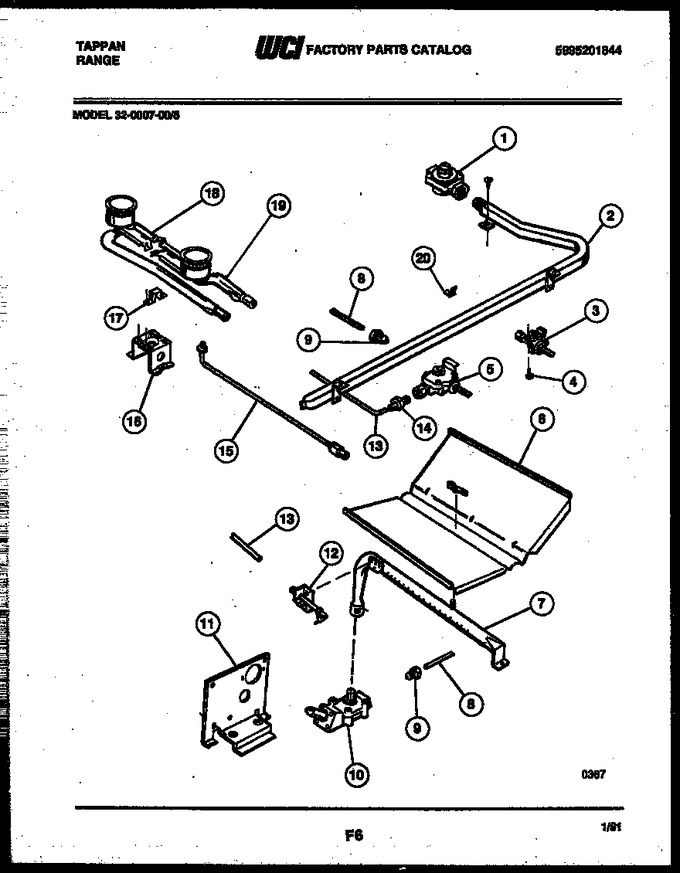

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308007974 | Pressure Regulator |
|
$ 309.02 | |||||
| 2 | 3131056 | Manifold |
|
- | |||||
| 3 | 5303131057 | Valve - Top Burner (4) |
|
- | |||||
| 4 | 3204499 | Bolt Valve Mtg |
|
- | |||||
| 5 | 5308013927 | Thermostat |
|
- | |||||
| 6 | 5303131061 | Baffle-oven Burner |
|
- | |||||
| 7 | 5308013855 | Burner-oven |
|
- | |||||
| 8 | 5303131063 | Tube Oven Supply |
|
- | |||||
| 9 | 5303131064 | Nut-loxit (3/8) |
|
- | |||||
| 10 | 5308013942 | Valve-safety |
|
- | |||||
| 11 | 3131069 | Support Safety Valve |
|
- | |||||
| 12 | 3205598 | Pilot-oven |
|
- | |||||
| 13 | 5303009490 | Tube-oven Pilot |
|
- | |||||
| 14 | 3131074 | Nut-loxit |
|
- | |||||
| 15 | 5303131075 | Tube-pilot |
|
- | |||||
| 16 | 5303016870 | Support-top Burner |
|
- | |||||
| 17 | 3131078 | Shield-pilot |
|
- | |||||
| 18 | 5303131079 | Burner,top ,rear |
|
$ 129.78 | |||||
| 19 | 5303131080 | Burner-top Front |
|
$ 76.13 | |||||
| 20 | 5300009126 | Clip |
|
- |
