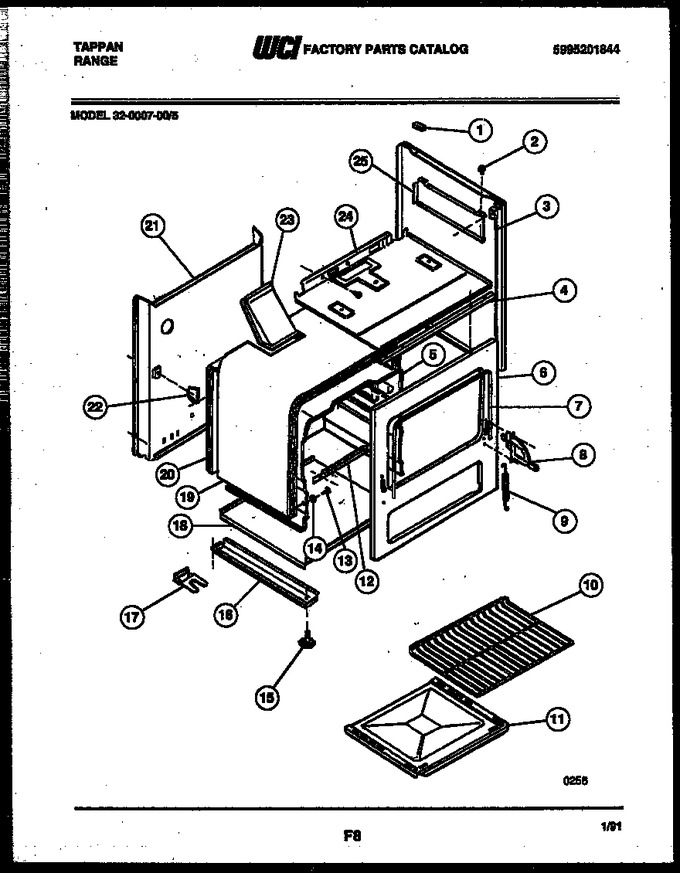

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205587		Grommet-maintop		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	5308014019		Panel Bodyside-lh/rh (almond)		Appelez-nous	-
4	3051067		Support Control Panel		Appelez-nous	-
5	3018284		Oven Liner-side Rh		Appelez-nous	-
6	3203621		Front Frame		Appelez-nous	-
7	5303051069		Seal-door		Appelez-nous	-
8	5303204672		Cam Door-lh		Appelez-nous	-
9	5303051079		Spring Cam-lh/rh		Appelez-nous	-
10	3016158		Rack		Appelez-nous	-
11	3018697		Oven-bottom		Appelez-nous	-
12	3131038		Support - Oven Bttm		Appelez-nous	-
13	08008037		Bolt		Appelez-nous	-
14	3131040		Washer		Appelez-nous	-
15	318175510		Leveling Leg   (Replaces: 5303210257)			Immediately	$ 24.26
16	5303210255		Rail-base Right		Appelez-nous	-
17	3934059		Anti-tip Brkt		Appelez-nous	-
18	3131042		Main Bottom		Appelez-nous	-
19	3131043		Insulation Wrapper		Appelez-nous	-
20	3131044		Insulation-back		Appelez-nous	-
21	5303212609		Back-main		Appelez-nous	-
22	3051096		Support,oven Rear		Appelez-nous	-
23	3017173		Vent Box		Appelez-nous	-
24	3017573		Burner Box		Appelez-nous	-
25	5303131053		Shield-burner Box Rh		Appelez-nous	-
*42381	5303210892		Retainer-counter Weight (2)		Appelez-nous	-
*42381	5303210891		Weight-cement (2)		Appelez-nous	-
*42381	08008009		Bushing,snap		Appelez-nous	-
*42382	3131791		Clip-b/s Corner				$ 19.01
16A	5303210256		Rail-base Left		Appelez-nous	-
25A	5303131054		Shield-burner Box Lh		Appelez-nous	-
5A	3018285		Oven Liner-side Lh		Appelez-nous	-
5B	3018700		Oven Liner-top		Appelez-nous	-
5C	3018699		Oven Liner-back		Appelez-nous	-
8A	5303204670		Cam Door-rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
