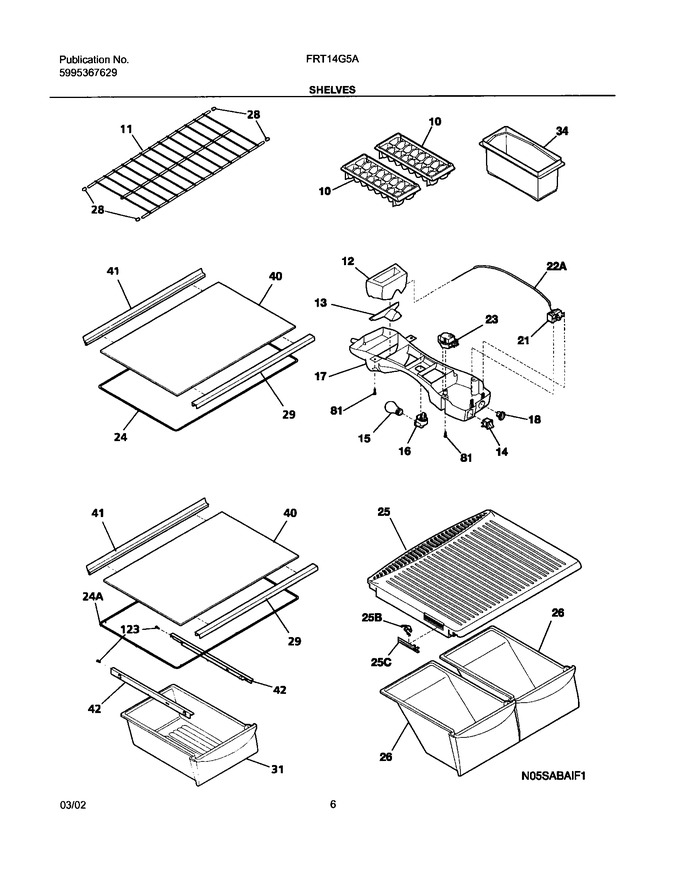

07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 240358007 | Shelf-freezer (Replaces: 240358001) |
|
Immediately | $ 87.17 | ||||
| 12 | 240362502 | Diffuser-air,top |
|
- | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 240505801 | Switch-light/lamp |
|
$ 66.63 | |||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,40 W ,120 V ,miniature (Replaces: 240436701) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 72.68 | |||||
| 17 | 240368002 | Box-control (Replaces: 240368001) |
|
$ 134.23 | |||||
| 18 | 240360801 | Knob-control |
|
$ 43.95 | |||||
| 24 | 240372404 | Frame-shelf,sliding ,full Width (Replaces: 240372401) |
|
Immediately | $ 103.14 | ||||
| 25 | 240364721 | Cover-crisper Pan |
|
- | |||||
| 26 | 240364503 | Pan-crisper,(2) |
|
Immediately | $ 146.53 | ||||
| 28 | 3201150 | End Cap,freezer Shelf ,protector |
|
$ 4.57 | |||||
| 29 | 240357703 | Trim-shelf,front |
|
Immediately | $ 63.79 | ||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530803) |
|
Immediately | $ 135.77 | ||||
| 34 | 3018945 | Container-ice |
|
- | |||||
| 40 | 240350619 | Glass-shelf,22.16`` X 16.08`` ,refr (Replaces: 240350663) |
|
$ 157.27 | |||||
| 41 | 240561501 | Trim-shelf,rear (Replaces: 240357803) |
|
Immediately | $ 44.65 | ||||
| 42 | 240530601 | Hanger-meat Pan,lh |
|
Immediately | $ 65.98 | ||||
| 42 | 240530701 | Hanger-meat Pan,rh |
|
Immediately | $ 65.98 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw-roller/hanger`8-10 X 0.438 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 9.10 | |||||
| 24A | 240372404 | Frame-shelf,sliding ,full Width ,w/hanger Tabs |
|
Immediately | $ 103.14 | ||||
| 25B | 5304492617 | Control-humidity (Replaces: 240361202) |
|
Immediately | $ 8.69 | ||||
| 25C | 5304492617 | Damper-humidity Control (Replaces: 240361301) |
|
Immediately | $ 8.69 | ||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| F23 | 215846602 | Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| NI | 240494301 | Retainer-crisper Cover |
|
- | |||||
| NI | 240392601 | Seal-diffuser |
|
$ 6.57 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| NI | 5303299664 | Spacer-shelf |
|
$ 24.10 |
