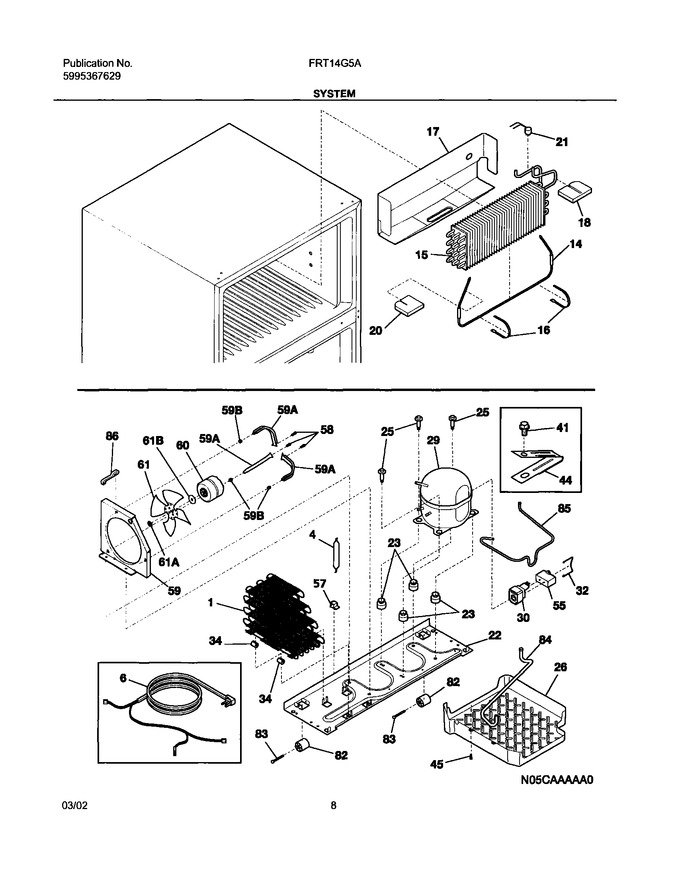

09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	240496101		Wiring Harness,machine Compt ,w/electric Cord				$ 278.40
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	240434001		Trough-drain		Appelez-nous	-
18	240362301		Insulation Block,rh		Appelez-nous	-
20	240362401		Insulation Block,lh		Appelez-nous	-
22	240330005		Base-compressor		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	240491501		Screw-compressor Mtg,hex Washer Head ,1/4-28 X 1.16,shoulder,typ Cf		Appelez-nous	-
26	241920605		Pan-defrost Drain   (Replaces: 240332603)				$ 53.76
32	240493301		Clamp,elec Cont Mtg ,compressor ,bale Wire		Appelez-nous	-
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	218897001		Screw,hex Washer Head ,8-32 X 1/4				$ 4.40
44	5303001199		Clamp				$ 65.92
45	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
57	240403601		Clip-wiring Harness		Appelez-nous	-
58	240346801		Screw-cond Fan Mtr,hx Serr Wshr Hd ,8-32 X 7/16,(3)		Appelez-nous	-
59	240315501		Shroud-cond Fan				$ 65.42
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
84	240500801		Tube-drain,lower				$ 65.21
85	240493101		Tube-connector,suction				$ 85.95
86	240409302		Spacer-cond Tube,black				$ 67.49
59A	240346501		Bracket-support,cond Mtr ,(3)				$ 21.97
59B	240346601		Grommet-bracket,(3)				$ 19.24
61A	218956700		Nut,speed		Appelez-nous	-
61B	218956801		Grommet-silencer		Appelez-nous	-
F1	240444401		Condenser,dynamic		Appelez-nous	-
F14	5303918203		Defrost Heater Kit				$ 156.64
F15	5303918275		Evaporator Kit   (Replaces: 5303918257)				$ 343.46
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 20.21
F29	5304511983		Compressor,w/electricals   (Replaces: 5303918265)				$ 671.86
F30	5304491942		Starter-ptc   (Replaces: 218721120)				$ 121.19
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
F60	5303918774		Motor-condenser Fan   (Replaces: 240397101)			Immediately	$ 186.30
F61	240315401		Fan Blade,galv Steel ,condenser Fan				$ 169.54
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	240385401		Wiring Harness,freezer Section				$ 73.97
NI	240359401		Screw-fan Shroud,(2)		Appelez-nous	-
NI	240346701		Tape-foam Seal,shroud				$ 29.77
NI	5308000039		Screw		Appelez-nous	-
NI	218843800		Screw,hex Wshr Hd ,8-15a X 0.500		Appelez-nous	-
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	5303918263		Heat Exchanger Kit,suction Line				$ 461.16
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	240397201		Connector-shaft		Appelez-nous	-
