01 - Cooktop Parts

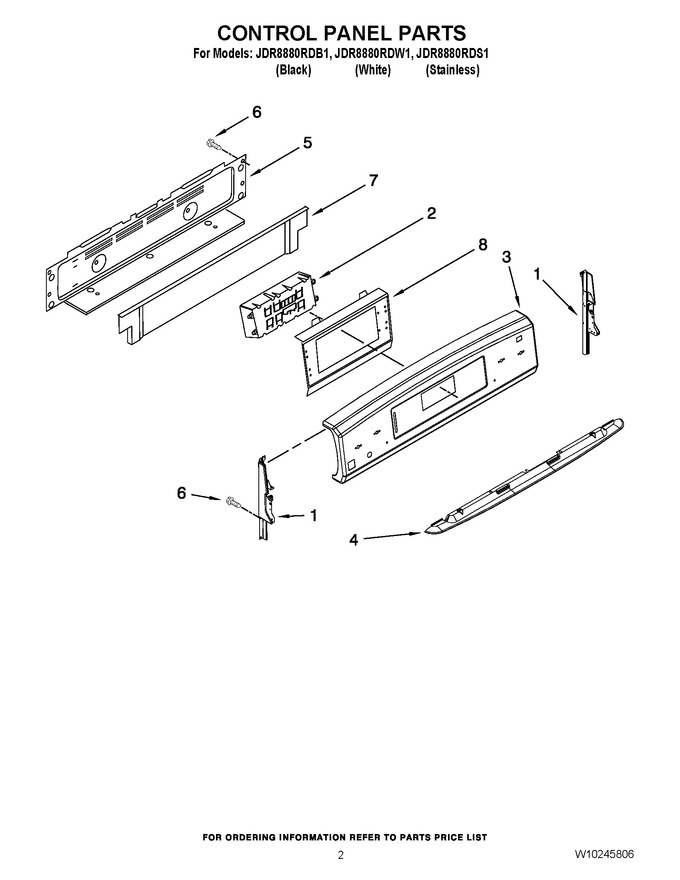

02 - Control Panel Parts
03 - Oven Parts
04 - Manifold Parts
05 - Drawer Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F702-71 | End Cap (white (right)) |
|
- | |||||
| 1 | 3807F703-71 | End Cap (white (left)) |
|
- | |||||
| 1 | 3807F702-70 | End Cap (black (right)) |
|
- | |||||
| 1 | 3807F703-70 | End Cap (black (left)) |
|
- | |||||
| 2 | WP8507P333-60 | Control (Replaces: 8507P333-60) |
|
$ 334.59 | |||||
| 3 | WP7450P075-60 | Backguard Assy. (white) (Replaces: 5751M719-60) |
|
$ 359.96 | |||||
| 3 | 5751M717-60 | Backguard Assy. (black) |
|
- | |||||
| 3 | 5751M718-60 | Backguard Assy. (stainless) |
|
- | |||||
| 4 | 3604F382-81 | Sheild, Heat Visor (white) |
|
$ 32.49 | |||||
| 4 | 3604F382-09 | Sheild, Heat Visor (black) |
|
$ 50.83 | |||||
| 5 | 4005P711-51 | Cover, Rear Wire |
|
$ 6.05 | |||||
| 6 | W11233072 | Screw (8ab 1/2-ni) (Replaces: 7101P388-60) |
|
Immediately | $ 12.62 | ||||
| 7 | 3604F381-19 | Shield, Vent |
|
$ 31.31 | |||||
| 8 | 3801F945-51 | Bracket, Control |
|
$ 53.75 |
