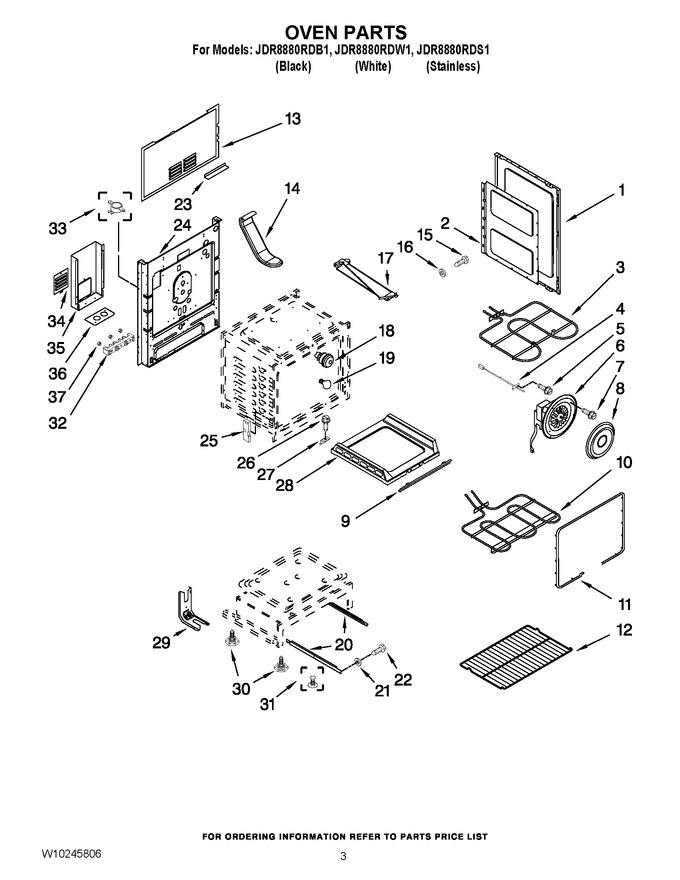

01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Manifold Parts
05 - Drawer Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2618F172-58 | Panel, Side (white) |
|
$ 47.61 | |||||
| 1 | 2618F172-69 | Panel, Side (black) |
|
$ 81.90 | |||||
| 2 | 3804F311-51 | Retainer, Side |
|
- | |||||
| 3 | WP7406P493-60 | Element, Broil (Replaces: 7406P493-60) |
|
Immediately | $ 178.99 | ||||
| 4 | 12001656 | Oven Sensor |
|
Immediately | $ 39.55 | ||||
| 5 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 6 | 7427P109-60 | Fan Assy. Convect |
|
$ 208.29 | |||||
| 7 | 7101P385-60 | Screw |
|
- | |||||
| 8 | 4005P704-51 | Cover, Convect Pl |
|
$ 7.07 | |||||
| 9 | 3807P680-45 | Support, Oven |
|
$ 33.39 | |||||
| 10 | 7406P456-60 | Element, Bake |
|
$ 108.15 | |||||
| 11 | W11562931 | Gasket (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 12 | W11520287 | Rack, Oven (Replaces: W10179196) |
|
Immediately | $ 42.16 | ||||
| 13 | 4005F754-51 | Cover, Main Wire |
|
$ 87.80 | |||||
| 14 | 8026P090-60 | Smoke Eliminator |
|
- | |||||
| 15 | 7101P618-60 | Screw, Shoulder No.8 |
|
- | |||||
| 16 | 74008690 | Spacer, Side Panel (Replaces: 8010P148-60) |
|
$ 19.49 | |||||
| 17 | W10792991 | Latch, Door Lock (Replaces: 8002P104-60) |
|
$ 305.63 | |||||
| 18 | WP74011278 | Light, Oven (Replaces: 7407P181-60) |
|
$ 101.56 | |||||
| 19 | 8009 | Bulb, Oven Light (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 20 | 3406F034-51 | Runner, Drawer |
|
- | |||||
| 21 | WP74004078 | Roller, Drawer (Replaces: 8014P022-60) |
|
Immediately | $ 10.70 | ||||
| 22 | 7118P032-60 | Shaft, Drawer |
|
- | |||||
| 23 | 4005F804-51 | Bottom, Wire Cover |
|
$ 30.01 | |||||
| 24 | 4002F347-51 | Back, Main |
|
- | |||||
| 25 | WP74010551 | Receiver, Hinge (Replaces: 7106P125-60) |
|
Immediately | $ 12.60 | ||||
| 26 | WP74003976 | Screw, Shoulder (Replaces: 7101P500-60) |
|
$ 6.47 | |||||
| 27 | 3801P822-45 | Support, Oven |
|
$ 5.27 | |||||
| 28 | WPW10211368 | Bottom, Oven (Replaces: 2205F053-19) |
|
Immediately | $ 287.07 | ||||
| 29 | WP3801F656-51 | Anti-tip Bracket (Replaces: 3801F656-51) |
|
Immediately | $ 4.69 | ||||
| 30 | W11665456 | Leg, Leveling (Replaces: 7101P507-60) |
|
Immediately | $ 25.30 | ||||
| 31 | 8038P037-60 | Stop, Drawer |
|
- | |||||
| 32 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) |
|
Immediately | $ 31.65 | ||||
| 33 | 74008715 | Switch, Limit (Replaces: 7403P857-60) |
|
$ 183.40 | |||||
| 34 | 4005F704-51 | Panel, Access |
|
- | |||||
| 35 | 4005F703-51 | Cover, Wire Lower |
|
- | |||||
| 36 | 3605F146-51 | Plate, Conduit |
|
$ 6.06 | |||||
| 37 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 |
