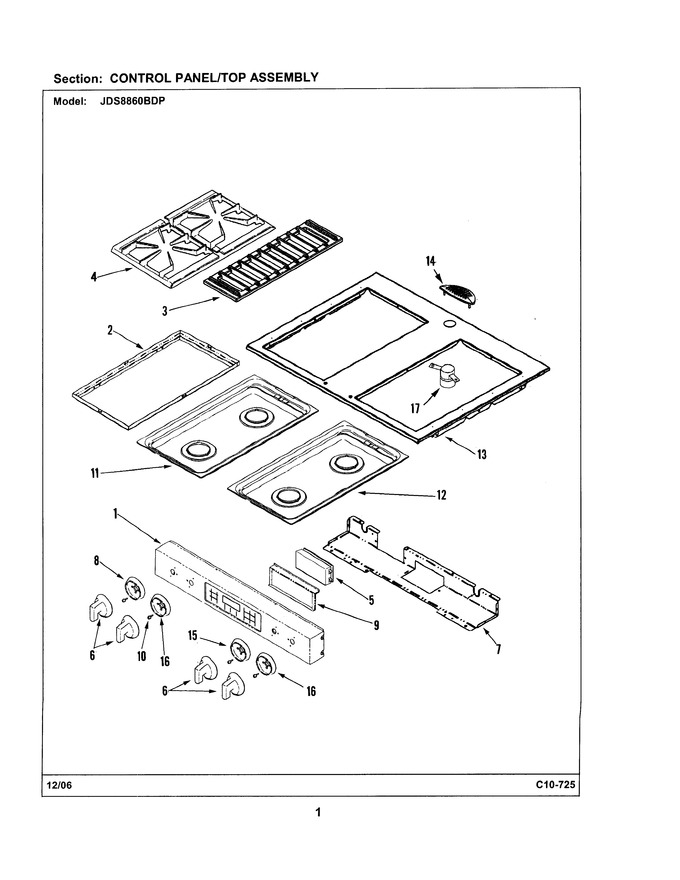

01 - Control Panel / Top Assembly


02 - Oven / Base


03 - Warming Drawer


04 - Door


05 - Body


06 - Wiring Information-french


07 - Gas Controls


08 - Supplemental Information


09 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP5760M339-60		Control Panel/switch Asy (stl)   (Replaces: 74011685)	10			$ 537.47
2	74011863		Trim Frame, Drip Pan	10	Appelez-nous	-
3	74011862		Grate, Trivet (ctr)	10	Appelez-nous	-
4	74011694		Grate (blk)	10	Appelez-nous	-
5	WP8507P334-60		Control   (Replaces: 8507P334-60)	10			$ 413.38
6	WPW10175695		Knob   (Replaces: 74011532)	10		Immediately	$ 26.03
7	74011688		Support, Control Panel	10	Appelez-nous	-
8	74011689		Bezel, Knob (dual)	10			$ 67.34
9	74011525		Bracket, Control	10	Appelez-nous	-
10	7101P208-60		Screw (10abx1/4p Tr Zn)	10			$ 11.92
11	74011693		Pan, Drip (dual Burner)	10	Appelez-nous	-
12	74009620		Pan, Drip (med)	10	Appelez-nous	-
13	7746P125-60		Top Asy	10	Appelez-nous	-
14	74011632		Trim, Vent (blk)	10	Appelez-nous	-
15	74011690		Bezel, Knob (smr)	10			$ 134.87
16	74011691		Bezel, Knob	10			$ 47.51
17	74005759		Tube, Vent (upr)	10	Appelez-nous	-
NI	W11233072		Screw   (Replaces: 74009538)	10		Immediately	$ 12.62
NI	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
NI	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
NI	74011524		Shield, Control	10	Appelez-nous	-
NI	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	10			$ 6.98

    View Diagram in Separate Window       Print Part List
