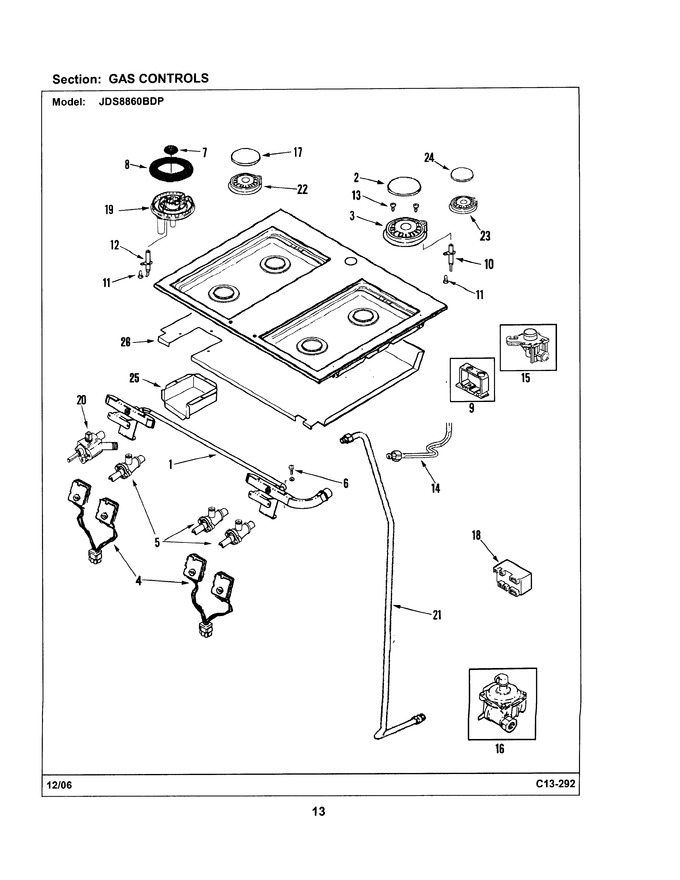

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011528 | Manifold Pipe Asy. | 10 |
|
- | ||||
| 1 | W10165142 | Manifold Pipe Asy | 15 |
|
$ 114.40 | ||||
| 2 | 74007750 | Cap, Burner (lrg-blk) | 10 |
|
- | ||||
| 3 | 74007736 | Burner Assembly (x-lrg) | 10 |
|
Immediately | $ 105.36 | |||
| 4 | WP74011647 | Switch/harness Asy (lt) (Replaces: 74011647) | 10 |
|
$ 199.09 | ||||
| 4 | WPW10181456 | Switch/harness Asy (lt) (Replaces: W10181456) | 15 |
|
Immediately | $ 177.80 | |||
| 4 | WP74008212 | Cover, Valve Switch (Replaces: 74008212) | 15 |
|
$ 6.88 | ||||
| 5 | 7502P561-60 | Valve, 5k (mueller) | 15 |
|
$ 177.73 | ||||
| 5 | 7502P564-60 | Valve, Burner |
|
$ 117.14 | |||||
| 5 | 74009451 | Valve, 5k (mueller) | 10 |
|
- | ||||
| 6 | 74009416 | Screw | 10 |
|
- | ||||
| 7 | 74011650 | Cap, Dual Burner (blk/inner) | 10 |
|
$ 24.19 | ||||
| 8 | 74011651 | Cap, Dual Burner (blk/outer) | 10 |
|
$ 44.79 | ||||
| 9 | WP7527P061-60 | Holder, Orifice (dual Bnr) (Replaces: 74011669) | 10 |
|
$ 96.89 | ||||
| 10 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 11 | WP8273062 | Screw, Ignitor (Replaces: 74009337) | 10 |
|
Immediately | $ 7.12 | |||
| 12 | WP74011829 | Igniter (dual Burner) (Replaces: 74011829) | 10 |
|
Immediately | $ 29.87 | |||
| 13 | W11772394 | Screw, Self Tapping (Replaces: 74007410) | 10 |
|
Immediately | $ 10.94 | |||
| 14 | 74011653 | Tubing, Burner (rf) | 10 |
|
- | ||||
| 15 | WP7527P002-60 | Holder, Orifice (9.2k) (Replaces: 74007764) | 10 |
|
$ 72.90 | ||||
| 16 | 74011871 | Regulator, Pressure | 10 |
|
- | ||||
| 17 | 74007749 | Cap, Burner (med-blk) | 10 |
|
$ 42.04 | ||||
| 18 | WPW10475147 | Module, Spark (Replaces: 71002783) | 10 |
|
Immediately | $ 214.42 | |||
| 19 | 74011652 | Burner Asy (dual) | 10 |
|
$ 112.31 | ||||
| 20 | WP74011649 | Valve, Burner (dual) (Replaces: 74011649) | 10 |
|
$ 313.97 | ||||
| 21 | W10224720 | Tubing, Supply (Replaces: W10184413) | 15 |
|
$ 214.65 | ||||
| 21 | 74011658 | Tubing, Supply | 10 |
|
- | ||||
| 22 | 74007735 | Burner Assembly (lrg) | 10 |
|
Immediately | $ 102.76 | |||
| 23 | 74007734 | Burner Assembly (small) | 10 |
|
$ 107.79 | ||||
| 24 | WP8284669 | Cap, Burner (smr-blk) (Replaces: 74007748) | 10 |
|
Immediately | $ 64.79 | |||
| 25 | 8403P031-60 | Cover, Dual Burner Orifice | 10 |
|
- | ||||
| 26 | 4011F496-50 | Bottom, Burner Box | 10 |
|
- | ||||
| NI | 7502P562-60 | Valve, 9k (mueller) | 15 |
|
$ 216.90 | ||||
| NI | 74009452 | Valve, 9k (mueller) | 10 |
|
- | ||||
| NI | W10181455 | Switch/harness Asy (rt) | 15 |
|
$ 173.26 | ||||
| NI | 74011654 | Tubing, Burner (rr) | 10 |
|
- | ||||
| NI | WP74011648 | Switch/harness Asy (rt) (Replaces: 74011648) | 10 |
|
Immediately | $ 199.10 | |||
| NI | 74011655 | Tubing, Burner (lr) | 10 |
|
- | ||||
| NI | 74011656 | Tubing, Dual Burner (inner) | 10 |
|
- | ||||
| NI | 74011657 | Tubing, Dual Burner (outer) | 10 |
|
- | ||||
| NI | WP7527P004-60 | Holder, Orifice (15k) (Replaces: 74007766) | 10 |
|
$ 72.90 | ||||
| NI | 74009553 | Holder, Orifice (5k) | 10 |
|
$ 75.27 | ||||
| NI | 74011867 | Valve, Burner | 10 |
|
$ 158.80 |
