Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP74010805 Screw, Leveling Leg   (Replaces: 74010805) 10 Special Order $ 6.47

2 4020W035-80 Bottom, Pedestal   (Replaces: 74010899) 10 Special Order $ 101.54

3 74010882 Pedestal, Front 10 Appelez-nous -
4 WP67006908 Screw, 3/4`` Hex Head   (Replaces: 74010505) 10 In-Stock Immediately $ 7.16

5 74011482 Trim, Front Frame (blk) 10 Appelez-nous -
6 74005825 Support, Retainer 10 Appelez-nous -
7 74011515 Pedestal, Rear (rt) 10 Appelez-nous -
7 74011516 Pedestal, Rear (lt) 10 Appelez-nous -
8 WPW10282492 Rack, Oven   (Replaces: 74001757) 10 In-Stock Immediately $ 65.15

9 WP7101P485-60 Screw   (Replaces: 7101P352-60) 10 Special Order $ 26.33

9 WP3801F656-51 Bracket, Anti-tip   (Replaces: 74005564) 10 In-Stock Immediately $ 4.69

10 74005824 Retainer, Insulation 10 Appelez-nous -
11 74010808 Tube, Vent (lwr) 10 Appelez-nous -
11 74010809 Plate, Vent Cover 10 Appelez-nous -
12 74008408 Shield, Broil (30``) 10 Appelez-nous -
13 WP7406P430-60 Element, Broil   (Replaces: 74011479) 10 In-Stock Immediately $ 141.80

14 74003563 Support, Broil Element 10 Appelez-nous -
15 WPW10310274 Element, Bake   (Replaces: 74010883) 10 In-Stock Immediately $ 108.59

16 12001656 Sensor, Oven (long)   (Replaces: 74004943) 10 In-Stock Immediately $ 39.55

17 74011220 Light Asy, Hal0gen 10 Special Order $ 51.79

18 W10857933 Spacer, Side Panel   (Replaces: 8004P024-60) 10 Special Order $ 7.07

19 WPW10348409 Screw, W/shoulder   (Replaces: 74007476) 10 In-Stock Immediately $ 6.98

20 74009602 Receptacle, Meat Probe 10 Appelez-nous -
21 WP7430P038-60 Probe, Meat   (Replaces: 74008469) 10 Special Order $ 129.30

22 74011517 Convection Fan Asy. 10 Appelez-nous -
23 WPW10186795 Cover, Convection Fan   (Replaces: 74011752) 10 Special Order $ 73.31

24 WP74003976 Screw W/washer   (Replaces: 7101P124-60) 10 Special Order $ 6.47

25 74005826 Housing, Grease Cup 10 Appelez-nous -
26 74005827 Cup, Grease 10 Special Order $ 30.53


    View Diagram in Separate Window     Print Icon   Print Part List

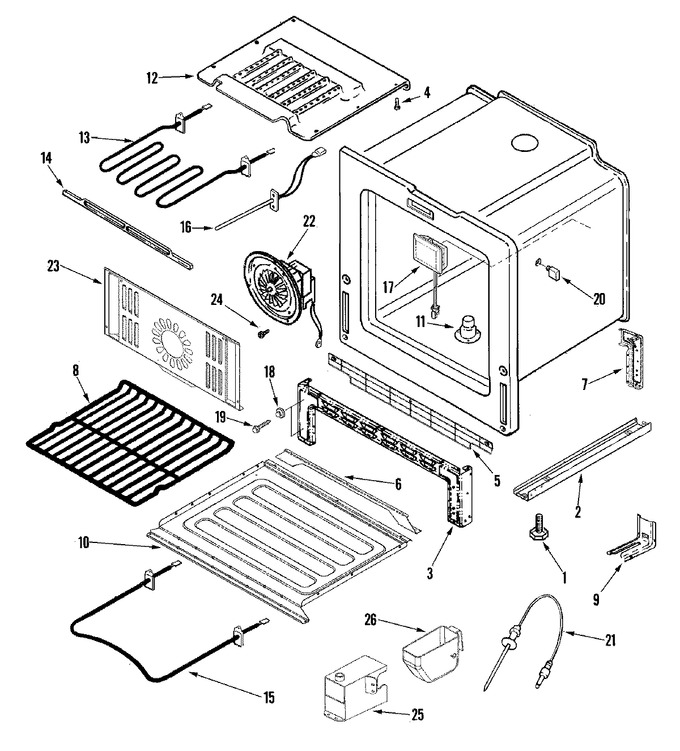

Diagram for JDS9860BDW
