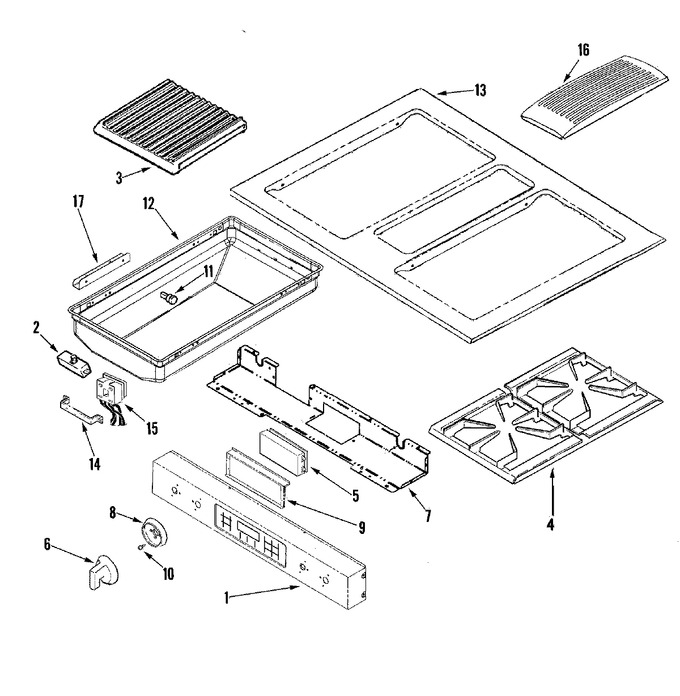

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP5760M373-60 | Control Panel/switch Asy (stl) (Replaces: 74011523) | 10 |
|
$ 524.46 | ||||
| 2 | WP7450P012-60 | Switch, Snap (Replaces: 74010438) | 10 |
|
Immediately | $ 135.54 | |||
| 3 | 71003267 | Grate, Grill | 10 |
|
$ 157.17 | ||||
| 4 | 74011535 | Grate | 10 |
|
$ 197.24 | ||||
| 5 | 74011524 | Shield, Control | 10 |
|
- | ||||
| 5 | W10202531 | Shield, Control | 20 |
|
- | ||||
| 5 | WP8507P232-60 | Control (Replaces: 74011750) | 10 |
|
Immediately | $ 352.38 | |||
| 5 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 6 | WPW10175695 | Knob (Replaces: 74011532) | 10 |
|
Immediately | $ 26.03 | |||
| 7 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 7 | 74011531 | Support, Control Panel | 10 |
|
- | ||||
| 8 | 74011533 | Bezel, Knob (simmer) | 10 |
|
- | ||||
| 8 | W10220976 | Bezel, Knob (Replaces: 74011534) | 10 |
|
$ 46.99 | ||||
| 9 | 74006129 | Bracket, Control | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 11 | Y052721 | Nut (Replaces: Y704553) | 10 |
|
$ 21.38 | ||||
| 11 | 71001764 | Pin, Locator | 10 |
|
$ 8.68 | ||||
| 12 | Y704947 | Washer | 10 |
|
- | ||||
| 12 | 74006090 | Pan, Grill (lt) | 10 |
|
- | ||||
| 13 | 74011474 | Top, Main (stl) | 10 |
|
- | ||||
| 14 | 7112P150-60 | Clip, Terminal Block (Replaces: 74006093) | 10 |
|
- | ||||
| 14 | 00489128 | Screw (Replaces: Y705026) | 10 |
|
$ 773.97 | ||||
| 15 | 74011519 | Harness/block, Spark (lt) | 10 |
|
$ 90.06 | ||||
| 16 | 74006061 | Grill, Air (blk) | 10 |
|
$ 114.30 | ||||
| 17 | 74011599 | Support, Cartridge Pan | 10 |
|
- | ||||
| 17 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 |
