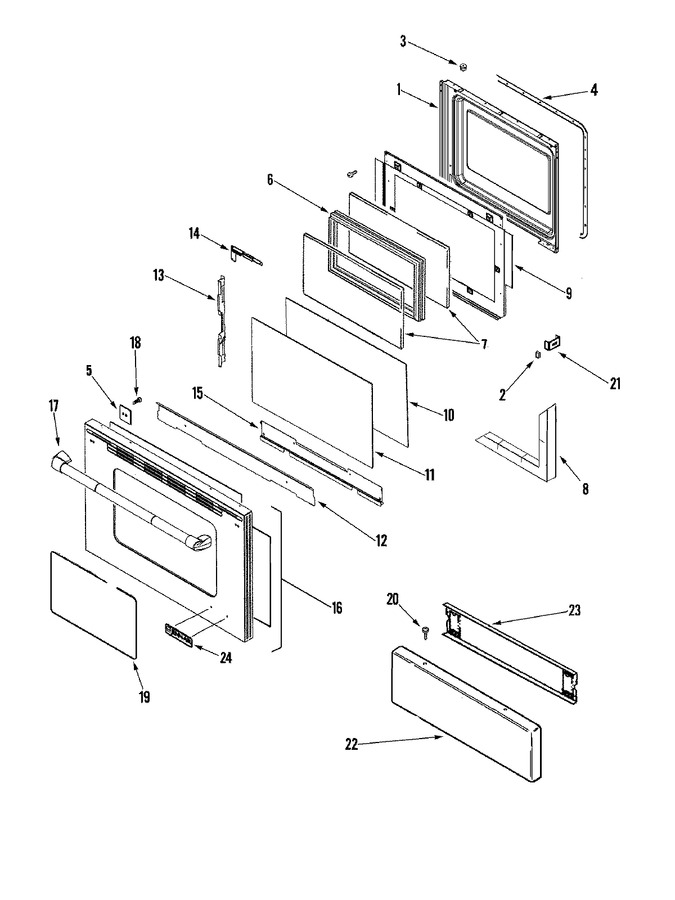

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003642 | Lining, Door | 10 |
|
- | ||||
| 2 | WP74004224 | Tape, Single Sided (wht) (Replaces: 74004224) | 10 |
|
$ 10.53 | ||||
| 3 | WP74001574 | Nut, Snap (round-blk) (Replaces: 74001574) | 10 |
|
Immediately | $ 9.91 | |||
| 4 | WPW10162384 | Gasket, Door (Replaces: 7201P046-60) | 10 |
|
Immediately | $ 77.61 | |||
| 5 | 74010785 | Plate, Back (handle Mtg) | 10 |
|
- | ||||
| 6 | 74003644 | Frame, Glass | 10 |
|
- | ||||
| 7 | 74003645 | Glass, Inner | 10 |
|
Immediately | $ 162.53 | |||
| 8 | 74003647 | Insulation, Oven Door | 10 |
|
- | ||||
| 9 | 74011339 | Baffle, Oven Door | 10 |
|
- | ||||
| 10 | 74010231 | Glass, Door (inner/coated) | 10 |
|
- | ||||
| 11 | 74003649 | Glass, Door | 10 |
|
- | ||||
| 12 | 74011049 | Shield, Door | 10 |
|
- | ||||
| 13 | 74011050 | Retainer, Glass Support | 10 |
|
- | ||||
| 14 | 74011504 | Retainer, Glass (rt) | 10 |
|
- | ||||
| 14 | 74011503 | Retainer, Glass (lt) | 10 |
|
- | ||||
| 15 | 74007215 | Retainer, Door Glass | 10 |
|
- | ||||
| 16 | 74011048 | Insulation, Foil | 10 |
|
$ 71.73 | ||||
| 16 | 74011536 | Door Panel Asy | 10 |
|
- | ||||
| 16 | WP74010043 | Insulation, Door (foil) (Replaces: 74010043) | 10 |
|
$ 67.18 | ||||
| 17 | WP7701P475-60 | Handle, Door (30`` Pro) (Replaces: 74008500) | 10 |
|
$ 251.94 | ||||
| 18 | 74011751 | Screw (10-24x 1/2) | 10 |
|
- | ||||
| 19 | 74008916 | Gasket, Window | 10 |
|
$ 127.97 | ||||
| 20 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 21 | 7112P034-60 | Clip, Door | 10 |
|
- | ||||
| 22 | 74007081 | Panel, Access (stl) | 10 |
|
- | ||||
| 23 | 74011554 | Hanger, Access Panel | 10 |
|
- | ||||
| 24 | 74006889 | Nameplate (stl) | 10 |
|
$ 43.24 | ||||
| 24 | 7103P166-60 | Palnut (Replaces: 715500) | 10 |
|
$ 15.91 |
