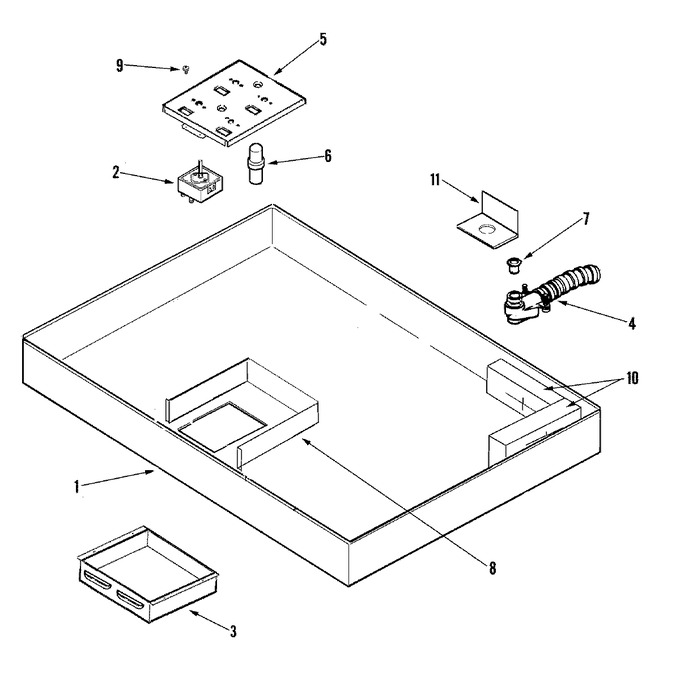

01 - Body
02 - Top Assembly
03 - Wiring Information
04 - Wiring Information (ser Pre 11 French)
05 - Wiring Information (ser Pre 11)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007835 | Bottom, Burner Box | 10 |
|
- | ||||
| 2 | WP74007841 | Switch, Infinite (Replaces: 74007841) | 10 |
|
$ 144.45 | ||||
| 2 | WP74007840 | Switch, Infinite (Replaces: 74007840) | 10 |
|
Immediately | $ 163.25 | |||
| 2 | 12002121 | Switch, Infinite (dual) (Replaces: 74007853) | 10 |
|
$ 108.89 | ||||
| 3 | 74007858 | Baffle, Bottom | 10 |
|
- | ||||
| 4 | 74010999 | Harness, Switch (rt) | 11 |
|
- | ||||
| 4 | 74010995 | Harness, Switch (lt) | 11 |
|
$ 75.63 | ||||
| 4 | 74007892 | Conduit, 1/2`` Flexible (48``) | 10 |
|
- | ||||
| 4 | WP71001171 | Screw, Ground (Replaces: 71001171) | 10 |
|
$ 6.26 | ||||
| 4 | 74010991 | Harness/conduit Asy | 11 |
|
- | ||||
| 4 | 74007837 | Harness/conduit Asy | 10 |
|
- | ||||
| 4 | 74007891 | Connector, Angle | 10 |
|
- | ||||
| 5 | 74007916 | Plate, Switch | 10 |
|
- | ||||
| 6 | Y706125 | Light, Indicator | 10 |
|
- | ||||
| 6 | 74011014 | Hot Light/wire Harness Asy | 11 |
|
- | ||||
| 7 | 74004222 | Grommet, Anti-short | 10 |
|
$ 7.82 | ||||
| 8 | 8008P068-60 | Grommet (Replaces: 74007844) | 10 |
|
$ 14.39 | ||||
| 8 | 74007917 | Cover, Switch Plate | 10 |
|
- | ||||
| 9 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 10 | 74007899 | Insulation, Burner Box | 10 |
|
$ 5.88 | ||||
| 11 | 74007893 | Bracket, Conduit/harness Asy. | 10 |
|
- |
