SELECT A DIAGRAM
01 - Body

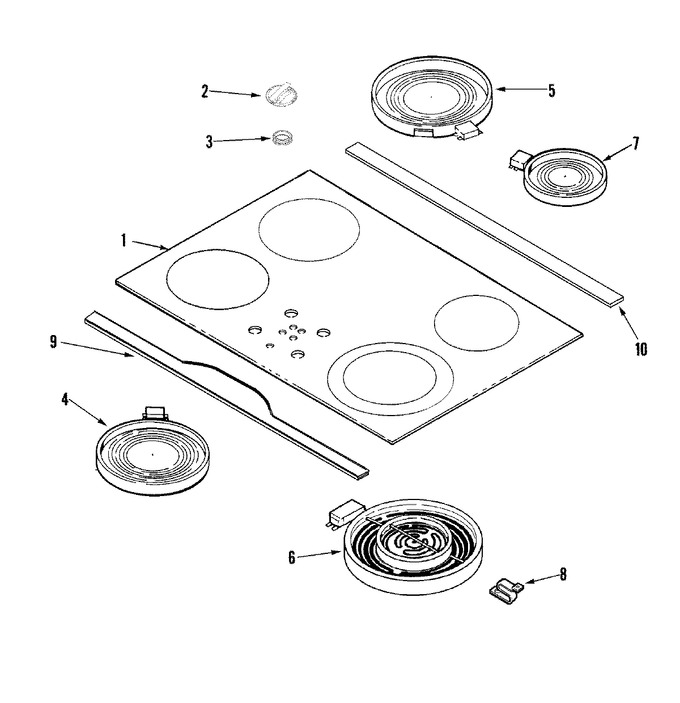

02 - Top Assembly
03 - Wiring Information
04 - Wiring Information (ser Pre 11 French)
05 - Wiring Information (ser Pre 11)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12002793 | Tape, Foam (Replaces: 74007941) | 1 |
|
$ 70.97 | ||||
| 1 | 74007854 | Top, Glass (bsq) | 10 |
|
- | ||||
| 2 | WP7737P245-60 | Knob (chr) (Replaces: 74007918) | 10 |
|
Immediately | $ 14.09 | |||
| 3 | WPW10293874 | Grommet (Replaces: 74007885) | 10 |
|
Immediately | $ 7.25 | |||
| 4 | W10823693 | Element (1800w) (Replaces: 74007838) | 10 |
|
Immediately | $ 205.87 | |||
| 4 | W10823698 | Element (1800w) (Replaces: 74011006) | 11 |
|
Immediately | $ 175.61 | |||
| 5 | W10823708 | Element (2000w) (Replaces: 74007839) | 10 |
|
$ 307.60 | ||||
| 5 | WP74011005 | Element (2000w) (Replaces: 74011005) | 11 |
|
Immediately | $ 276.00 | |||
| 6 | W10823694 | Element, Dual Rad.(2400/1000w) (Replaces: 71002168) | 10 |
|
Immediately | $ 320.29 | |||
| 6 | W10823692 | Element, Dual (2400w) (Replaces: 74008897) | 11 |
|
Immediately | $ 204.83 | |||
| 7 | W10823704 | Element W/limiter (6``) (Replaces: 74005476) | 10 |
|
Immediately | $ 309.01 | |||
| 7 | W10823711 | Element (1200w) (Replaces: 74008568) | 11 |
|
Immediately | $ 183.95 | |||
| 8 | 74007845 | Support, Element | 10 |
|
- | ||||
| 11 | 74007265 | Manual, Use & Care | 10 |
|
- | ||||
| 11 | 8111P532-60 | Manual, Use & Care | 15 |
|
- | ||||
| 12 | WA906B | Razor, Scraper (Replaces: 74007585) | 10 |
|
Immediately | $ 4.86 | |||
| 12 | 20001080 | Cooktop Cleaning Creme 4 Oz | 10 |
|
$ 3.95 |
