SELECT A DIAGRAM

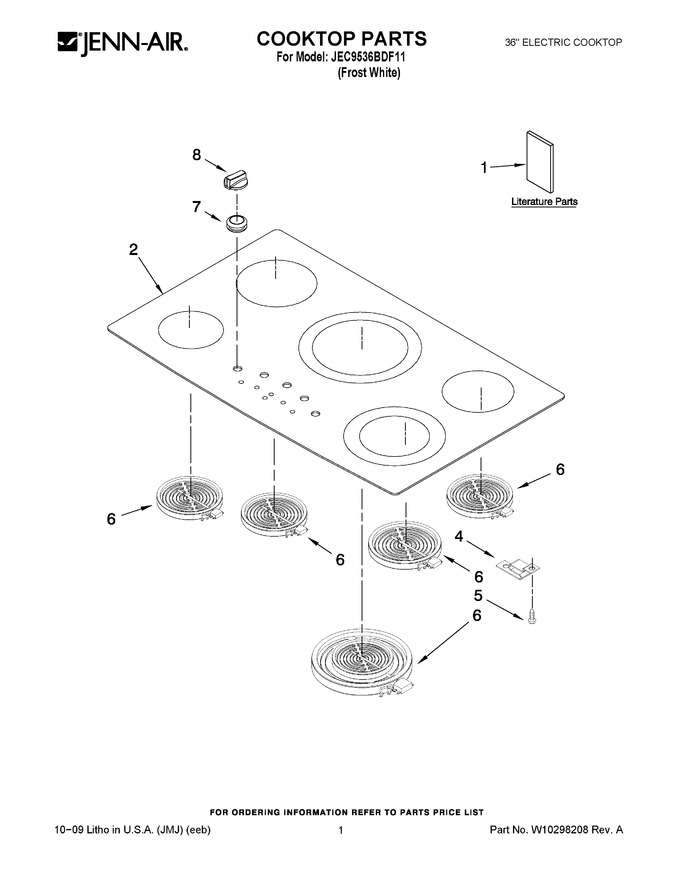

01 - Cooktop Parts


02 - Burner Box Parts


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8101P495-60		Installation Instructions		Appelez-nous	-
1	8119P381-60		Wiring Diagram (english)		Appelez-nous	-
1	8119P382-60		Wiring Diagram (french)		Appelez-nous	-
1	8111P534-60		Use & Care Guide		Appelez-nous	-
1	9762761		Brochure, Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Brochure, Safer Cooking Tips (french)		Appelez-nous	-
2	7920P174-60		Cooktop (black)		Appelez-nous	-
4	8004P093-60		Support, Ceramic Element (12)				$ 10.61
5	WP90767		Screw (24)   (Replaces: 7101P426-60)			Immediately	$ 7.04
6	W10823711		Element (1200w (lf))   (Replaces: 7406P365-60)			Immediately	$ 183.95
6	W10823698		Element (1800w (lr))   (Replaces: 7406P421-60)			Immediately	$ 175.61
6	W10823724		Element (3000w (rf))   (Replaces: 7406P491-60)			Immediately	$ 333.25
6	W10823713		Element (2700w Dual (center))   (Replaces: 7406P368-60)			Immediately	$ 330.41
6	WP8523700		Element (100w Warming (rr))   (Replaces: 7406P372-60)			Immediately	$ 159.08
7	WPW10293874		Grommet   (Replaces: 8008P076-60)			Immediately	$ 7.25
8	W10168629		Knob, Control (5)				$ 31.68
