01 - Cooktop Parts

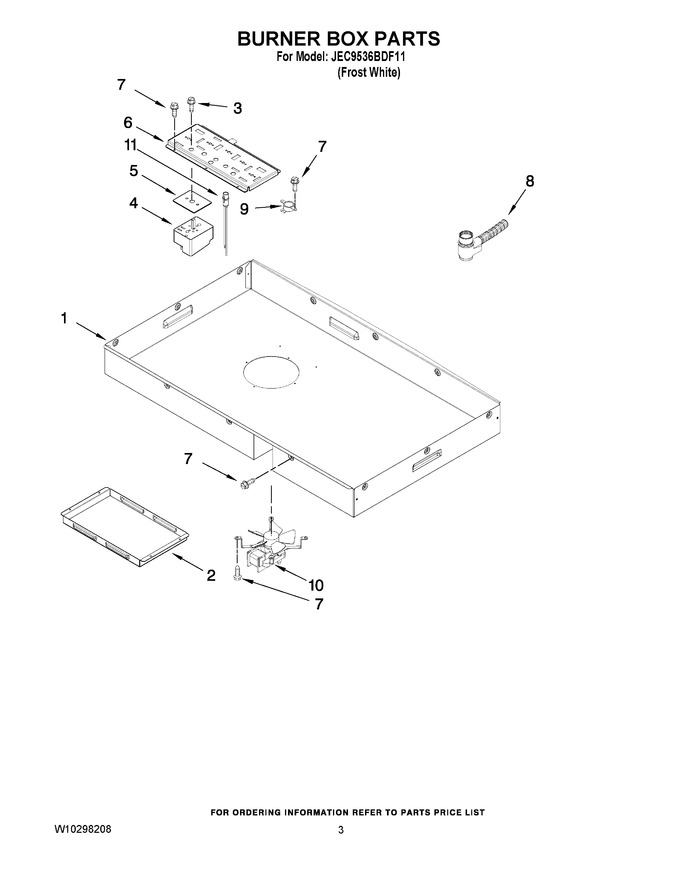

02 - Burner Box Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F519-51 | Box, Burner |
|
- | |||||
| 2 | 3601F384-51 | Baffle, Bottom |
|
$ 46.34 | |||||
| 3 | WP7101P309-60 | Screw, Switch (10) (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 4 | 8507P368-60 | Switch, Infinite (custom (rf)) |
|
$ 311.33 | |||||
| 4 | WP74008252 | Switch, Infinite (120v (rr)) (Replaces: 7403P848-60) |
|
$ 158.71 | |||||
| 4 | WP74007840 | Switch, Infinite (1400w (lf)) (Replaces: 7403P755-60) |
|
Immediately | $ 163.25 | ||||
| 4 | WP74007841 | Switch, Infinite (2600w (lr)) (Replaces: 7403P754-60) |
|
$ 144.45 | |||||
| 4 | 12002121 | Switch, Infinite (dual (center)) (Replaces: 7403P816-60) |
|
$ 108.89 | |||||
| 5 | 7201P130-60 | Gasket, Infinite Switch (5) |
|
- | |||||
| 6 | 3605F352-51 | Plate, Switch |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 8 | 5171P825-60 | Harness Main |
|
- | |||||
| 9 | 7403P227-60 | Thermostat |
|
$ 69.56 | |||||
| 10 | 7427P087-60 | Fan, Cooling |
|
- | |||||
| 11 | 7407P187-60 | Light, Panel (brown) |
|
- | |||||
| 11 | 7407P192-60 | Light, Panel (red) |
|
- | |||||
| 11 | 7407P191-60 | Light, Panel (black) |
|
- | |||||
| 11 | 7407P190-60 | Light, Panel (orange) |
|
- | |||||
| 11 | 7407P189-60 | Light, Panel (blue) |
|
- | |||||
| 11 | 7407P188-60 | Light, Panel (yellow) |
|
- |
