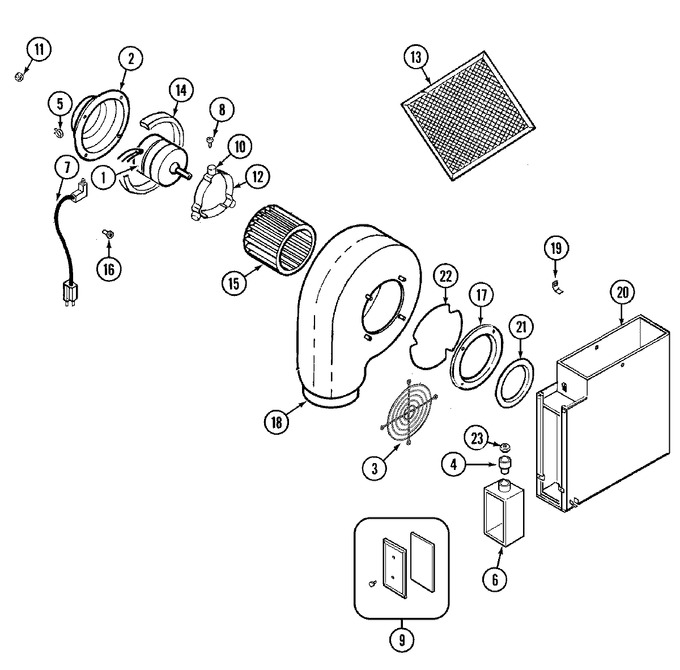

01 - Blower Motor-blower/plenum


02 - Burner Box


03 - Top Assembly


04 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y704759		Motor	10	Appelez-nous	-
1	Y712613		Motor Assy.	10	Appelez-nous	-
2	Y704760		Cover, Motor	10	Appelez-nous	-
2	707407		Screw	10			$ 6.42
3	71001534		Guard, Blower	10			$ 57.89
4	74005786		Nut, Acorn	10	Appelez-nous	-
4	705187		Connector, Conduit	10	Appelez-nous	-
4	74001521		Washer (1``)	10			$ 5.27
5	705186		Relief, Strain	10	Appelez-nous	-
6	705184		Box, Single Gang	10	Appelez-nous	-
7	705178		Cord, Power	10	Appelez-nous	-
8	WP4159193		Screw, Isolator   (Replaces: 71003542)	10			$ 4.29
9	Y705183		Cover Assy.	10	Appelez-nous	-
10	WP71003558		Isolator   (Replaces: Y708926)	10			$ 11.47
11	WPY707702		Locknut   (Replaces: Y707702)	10		Immediately	$ 6.26
12	Y707393		Band, Motor	10	Appelez-nous	-
12	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)	10		Immediately	$ 6.47
12	7101P326-60		Screw	10	Appelez-nous	-
13	WP707929		Filter, Grease   (Replaces: 707929)	10		Immediately	$ 44.51
14	Y715957		Foam, Urethane	10	Appelez-nous	-
15	WPY707985		Wheel, Blower   (Replaces: Y707985)	10		Immediately	$ 145.55
16	Y705177		Bushing, Plenum	10	Appelez-nous	-
17	702889		Locknut Cap, W/nylon Insert	10	Appelez-nous	-
17	Y704758		Ring, Inlet	10	Appelez-nous	-
18	712008		Scroll, Blower Assy.	10	Appelez-nous	-
19	W11233072		Screw   (Replaces: 7101P290-60)	10		Immediately	$ 12.62
19	Y707688		Retainer, Filter	10	Appelez-nous	-
20	71001759		Plate, Cover	10	Appelez-nous	-
20	71001577		Plenum Assy.	10	Appelez-nous	-
21	Y704761		Ring, Restrictor	10	Appelez-nous	-
22	Y704762		Retainer	10	Appelez-nous	-
23	705182		Washer, Reducing	10	Appelez-nous	-
