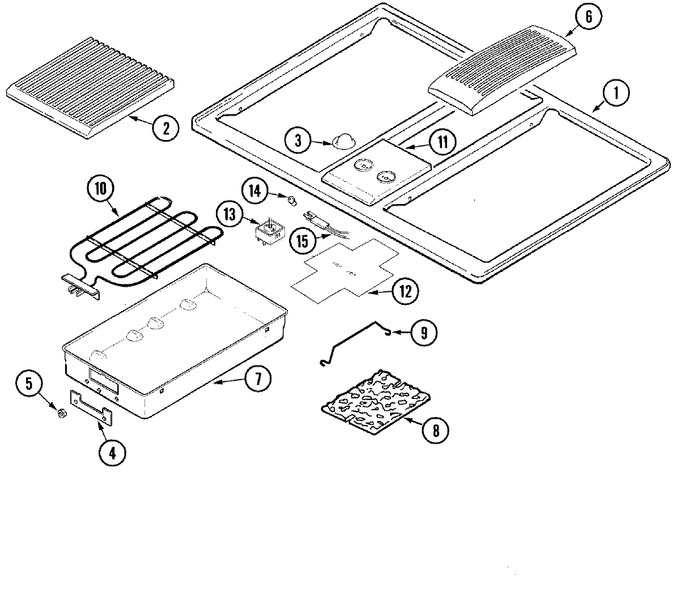

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | Y04100404 | Top, Black | 10 |
|
- | ||||
| 2 | 71002599 | Grate, Grill (single) | 10 |
|
- | ||||
| 3 | 7737P077-60 | Knob, Switch (Replaces: 705207) | 10 |
|
$ 45.19 | ||||
| 4 | Y705293 | Bracket, Stop | 10 |
|
- | ||||
| 5 | M0282005 | Nut, Hex (Replaces: 701719) | 10 |
|
$ 7.07 | ||||
| 6 | Y704570 | Grill, Air (blk) | 10 |
|
- | ||||
| 7 | 705210 | Pan, Grill (lt) | 10 |
|
- | ||||
| 8 | 708929 | Plate, Rock | 10 |
|
- | ||||
| 9 | 700819 | Support, Rock Plate | 10 |
|
$ 71.81 | ||||
| 10 | WP7406P229-60 | Element, Grill (240v) (Replaces: 71003237) | 10 |
|
$ 283.11 | ||||
| 11 | 74009869 | Escutcheon | 11 |
|
- | ||||
| 11 | 705189 | Escutcheon | 10 |
|
- | ||||
| 12 | 705188 | Gasket, Escutcheon | 10 |
|
- | ||||
| 13 | W11121638 | Switch, Infinite (Replaces: 705190) | 10 |
|
$ 149.18 | ||||
| 13 | 550748 | Valve Screw | 10 |
|
- | ||||
| 14 | Y702615 | Lens, Pilot Light | 10 |
|
- | ||||
| 15 | 704209 | Light, Pilot | 10 |
|
- | ||||
| 16 | 74006042 | Manual, Use & Care | 10 |
|
- |
