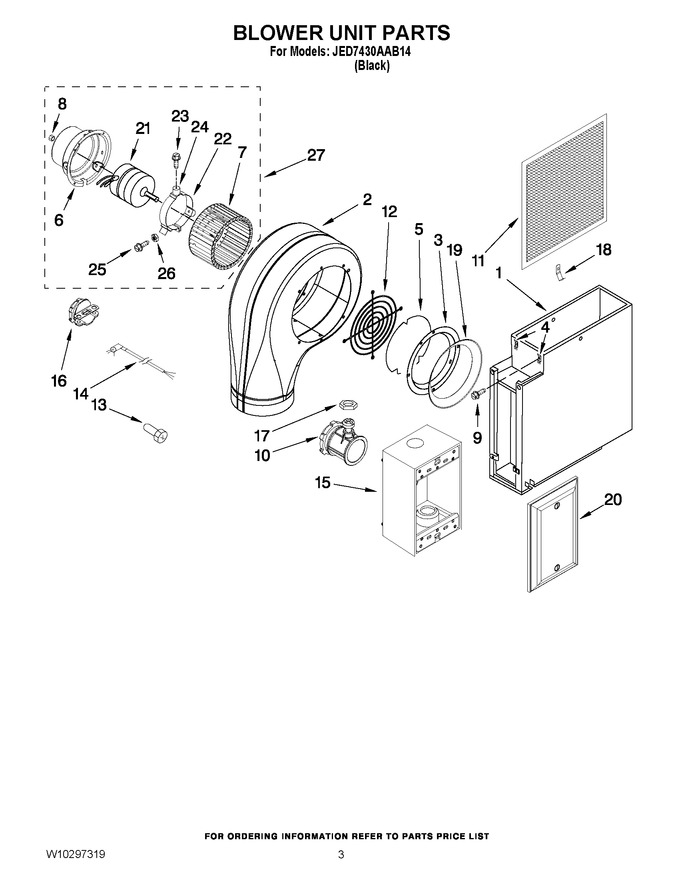

02 - Blower Unit Parts


03 - Burner Box Assembly


04 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2801W023-80		Assy, Plenum		Appelez-nous	-
2	2822W001-80		Blwr Assy, Scroll		Appelez-nous	-
3	4026F008-51		Ring, Inlet				$ 7.43
4	7104P011-60		Clip		Appelez-nous	-
5	8038P003-60		Retainer				$ 9.13
6	4005F513-80		Cover, Motor				$ 33.10
7	WPY707985		Wheel, Blower   (Replaces: 7114P005-60)			Immediately	$ 145.55
8	WPY707702		Nut, Acorn   (Replaces: 7103P162-60)			Immediately	$ 6.26
9	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
10	7417P026-60		Connector, Conduit		Appelez-nous	-
10	7103P192-60		Nut, Acorn		Appelez-nous	-
10	7109P086-60		Washer		Appelez-nous	-
11	WP707929		Filter, Grease   (Replaces: 8312P121-60)			Immediately	$ 44.51
12	8312P151-60		Gaurd, Blower		Appelez-nous	-
13	8007P033-60		Bushing, Plenum		Appelez-nous	-
14	7402P100-60		Cord, Power		Appelez-nous	-
15	8028P013-60		Box, Gang		Appelez-nous	-
16	7417P025-60		Relief, Strain		Appelez-nous	-
17	7109P058-60		Washer, Reducing		Appelez-nous	-
18	3804F188-50		Retainer, Filter		Appelez-nous	-
19	4026F009-51		Ring, Restrictor				$ 51.50
20	7724P118-60		Cover, Gang Box		Appelez-nous	-
21	7409P014-60		Motor, Blower		Appelez-nous	-
22	3415F003-51		Band, Motor				$ 41.94
23	WP4159193		Screw   (Replaces: 7101P115-60)				$ 4.29
24	WP71003558		Isolator, Motor   (Replaces: 8038P002-60)				$ 11.47
25	7101P326-60		Screw		Appelez-nous	-
26	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.47
27	5700D520-60		Motor Assembly		Appelez-nous	-
