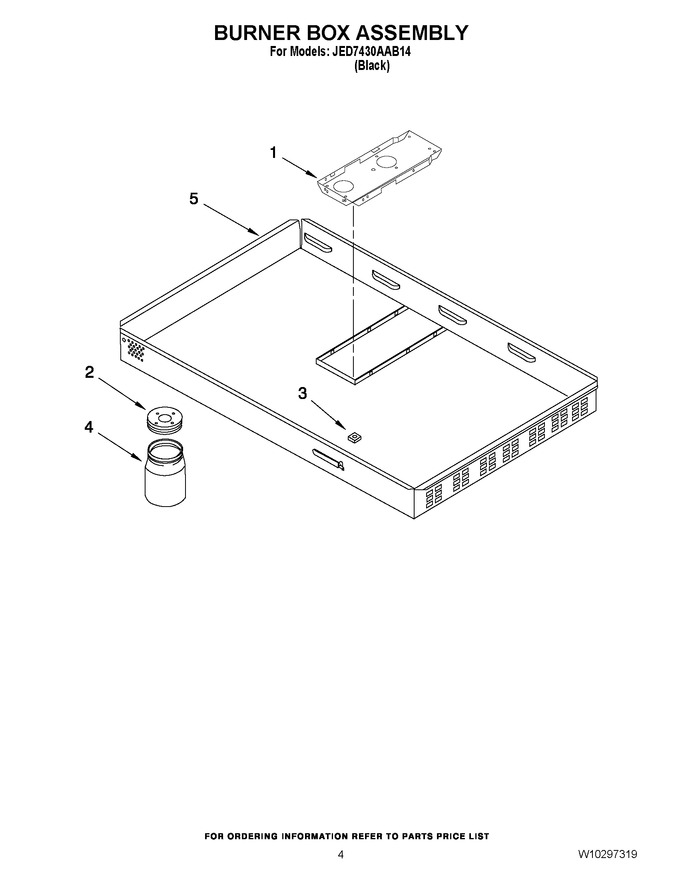

03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F265-51 | Baffle, Burner |
|
- | |||||
| 2 | 8312P150-60 | Jar, Lid |
|
- | |||||
| 3 | M0282009 | Nut, Square (Replaces: 7103P153-60) |
|
$ 12.06 | |||||
| 4 | WPY707869 | Jar, Drain (Replaces: 8312P120-60) |
|
$ 61.43 | |||||
| 5 | 4001F116-51 | Bottom, Burner |
|
- |
