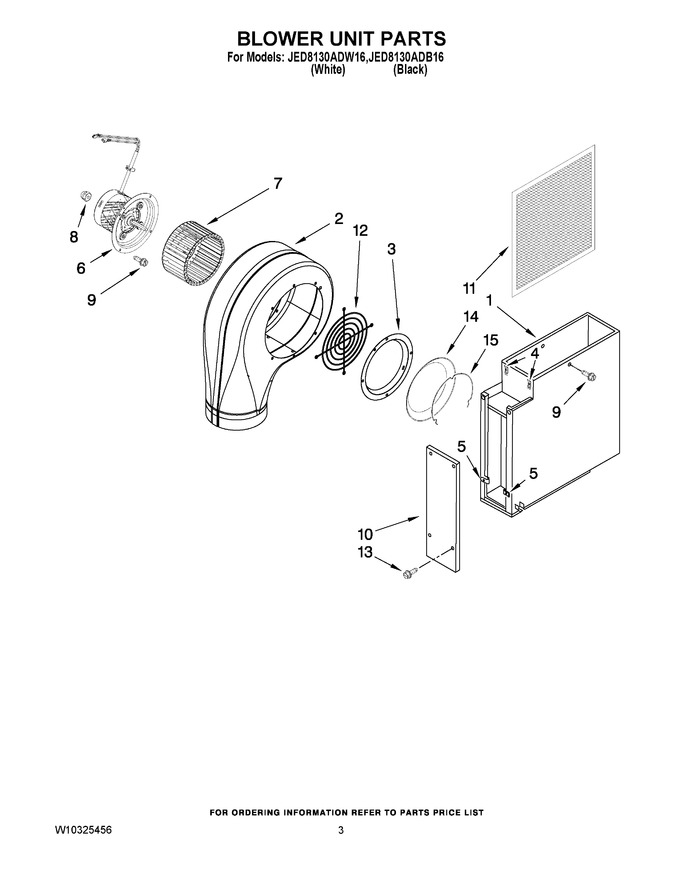

02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2801W023-80 | Assy, Plenum |
|
- | |||||
| 2 | 2822W001-80 | Blower/scroll Assembly |
|
- | |||||
| 3 | 4026F008-51 | Ring, Inlet |
|
$ 7.43 | |||||
| 4 | 74004835 | Clip (Replaces: 7112P147-60) |
|
$ 11.37 | |||||
| 5 | 7104P007-60 | Cover, Clip |
|
- | |||||
| 6 | WPW10241953 | Motor, Blower (Replaces: W10241953) |
|
$ 269.71 | |||||
| 7 | WPY707985 | Wheel, Blower (Replaces: 7114P005-60) |
|
Immediately | $ 145.55 | ||||
| 8 | 7103P192-60 | Nut, Acorn |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 7101P428-60) |
|
Immediately | $ 12.62 | ||||
| 10 | 4005F511-80 | Cover, Plate |
|
- | |||||
| 11 | WP707929 | Filter, Grease (Replaces: 8312P121-60) |
|
Immediately | $ 44.51 | ||||
| 11 | 3804F188-50 | Retainer, Filter |
|
- | |||||
| 12 | 7109P086-60 | Washer |
|
- | |||||
| 12 | 8312P151-60 | Guard, Blower |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 14 | 4026F009-51 | Ring, Restrictor |
|
$ 51.50 | |||||
| 15 | 8038P003-60 | Retainer |
|
$ 9.13 |
