Diagram for 03 - Burner Box Assembly
03 - Burner Box Assembly

Diagram for 04 - Optional Parts
04 - Optional Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3801F632-51 Bracket, Support Appelez-nous -
2 8312P150-60 Jar, Lid Appelez-nous -
3 M0282009 Nut, Square   (Replaces: 7103P153-60) Special Order $ 12.06

4 WPY707869 Jar, Drain   (Replaces: 8312P120-60) Special Order $ 61.43

5 4011F364-51 Bottom, Burner Special Order $ 101.30

6 8403P004-60 Cover, Gas Inlet Appelez-nous -
7 3801F444-51 Bracket, Support Appelez-nous -
8 3401F039-42 Pan, Insert Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

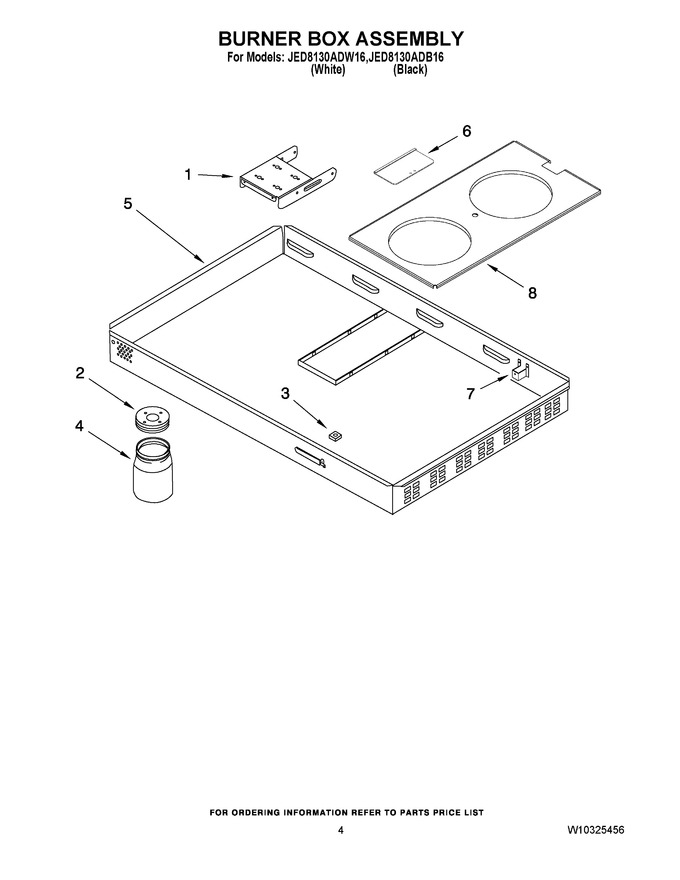

Diagram for JED8130ADB16
