View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum

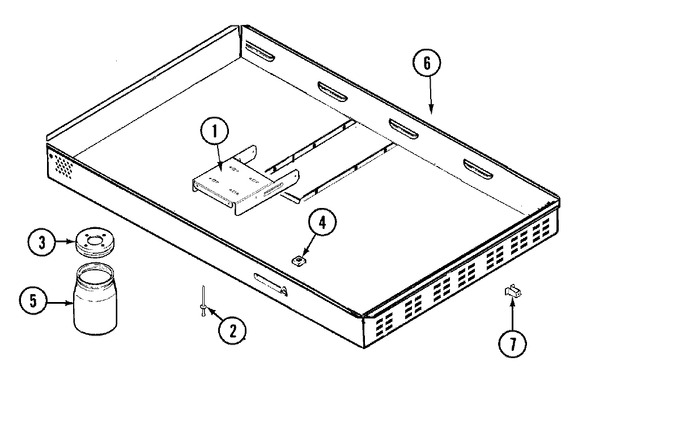

02 - Burner Box Assy.
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005833 | Bracket, Switch Support | 10 |
|
- | ||||
| 1 | 715938 | Pad, Spacer | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | Y707664 | Washer | 10 |
|
- | ||||
| 2 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 10 |
|
$ 12.14 | ||||
| 3 | Y04100296 | Lid, Jar | 10 |
|
- | ||||
| 4 | M0282009 | Nut,square (Replaces: Y707124) | 10 |
|
$ 12.06 | ||||
| 5 | WPY707869 | Jar, Drain (Replaces: Y707869) | 10 |
|
$ 61.43 | ||||
| 6 | 74005867 | Box, Burner | 10 |
|
- | ||||
| 6 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | Y700503 | Clip, Retainer | 10 |
|
- |
