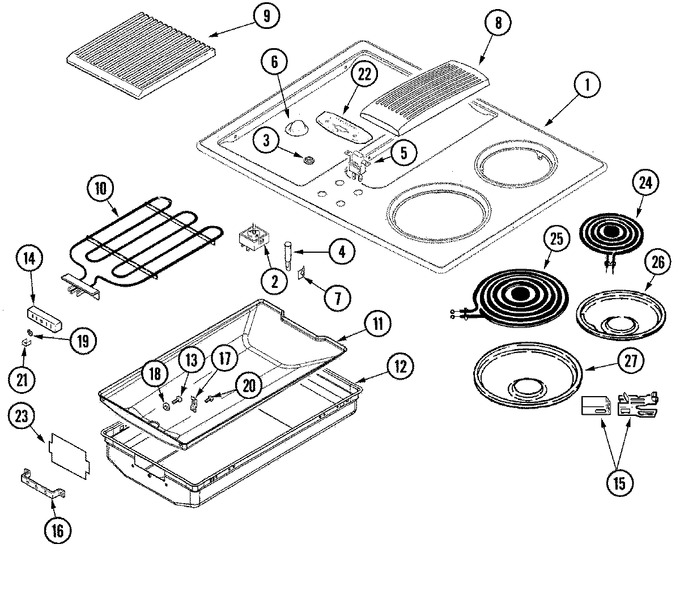

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box Assy.
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005900 | Top, Main (wht) | 10 |
|
- | ||||
| 1 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | W11088181 | Switch, Infinite (Replaces: 71001166) | 10 |
|
Immediately | $ 107.44 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 2 | Y705255 | Gasket, Switch | 10 |
|
- | ||||
| 3 | 71001561 | Palnut | 10 |
|
- | ||||
| 4 | 74005804 | Light, Indicator (blue) | 10 |
|
- | ||||
| 5 | W10341820 | Switch, Fan (wht) (Replaces: 71001563) | 10 |
|
$ 274.08 | ||||
| 5 | 12001452 | Relay, Fan (Replaces: 71001579) | 10 |
|
$ 179.93 | ||||
| 6 | W11106384 | Knob, Surface (wht) (Replaces: 74005802) | 10 |
|
$ 62.60 | ||||
| 7 | WP7112P152-60 | Clip, Indicator Light (Replaces: 74005791) | 10 |
|
$ 10.49 | ||||
| 8 | 74005793 | Grill, Air (wht) | 10 |
|
- | ||||
| 9 | 74006513 | Grate, Grill | 11 |
|
- | ||||
| 9 | 74005795 | Grate, Grill | 10 |
|
- | ||||
| 10 | WPW10310263 | Element, Grill (Replaces: 74006512) | 11 |
|
$ 293.68 | ||||
| 10 | Y708862 | Nut, Speed | 10 |
|
$ 13.08 | ||||
| 10 | WP74004005 | Screw (Replaces: Y703571) | 10 |
|
$ 6.95 | ||||
| 10 | 74005796 | Washer | 10 |
|
- | ||||
| 10 | Y700449 | Insulator | 10 |
|
- | ||||
| 10 | 74005553 | Element, Grill | 10 |
|
- | ||||
| 11 | 74005797 | Pan, Grill Insert | 10 |
|
- | ||||
| 12 | 74005799 | Pan, Grill (lt) | 10 |
|
- | ||||
| 13 | WP12990527 | Screw (Replaces: Y708955) | 10 |
|
Immediately | $ 7.15 | |||
| 14 | WPY708730 | Block, Terminal (Replaces: Y708730) | 10 |
|
Immediately | $ 87.44 | |||
| 15 | WP74007474 | Receptacle Assy (Replaces: 74007474) | 10 |
|
Immediately | $ 129.78 | |||
| 16 | 74005798 | Bracket, Receptacle | 10 |
|
- | ||||
| 17 | 74004835 | Clip | 10 |
|
$ 11.37 | ||||
| 17 | 74004835 | Clip (Replaces: Y702699) | 10 |
|
$ 11.37 | ||||
| 18 | 74005796 | Washer | 10 |
|
- | ||||
| 19 | M0282009 | Hex. Nut----na (Replaces: Y052679) | 10 |
|
$ 12.06 | ||||
| 20 | 00489128 | Screw (Replaces: Y705026) | 10 |
|
$ 773.97 | ||||
| 21 | Y700450 | Clip, Shunt | 10 |
|
$ 9.51 | ||||
| 22 | W10341820 | Trim, Control Fan (wht) (Replaces: 74005806) | 10 |
|
$ 274.08 | ||||
| 23 | 74005866 | Insulator, Ceramic Block | 10 |
|
- | ||||
| 24 | WP660532 | Element, Surface (6``-4t) (Replaces: 74007161) | 13 |
|
Immediately | $ 36.90 | |||
| 24 | WPY04100165 | Element (6``) (Replaces: 74005446) | 10 |
|
Immediately | $ 50.62 | |||
| 25 | WPY04100166 | Element (8``) (Replaces: 74005447) | 10 |
|
Immediately | $ 47.21 | |||
| 25 | WP3191454 | Element, Surface (8``-5t) (Replaces: 74007160) | 13 |
|
$ 163.63 | ||||
| 26 | 715877 | Pan, Drip (6``) | 10 |
|
Immediately | $ 19.39 | |||
| 27 | 715878 | Pan, Drip (8``) | 10 |
|
Immediately | $ 21.16 | |||
| 28 | 74005843 | Wire, Brown 14, 15 | 10 |
|
- | ||||
| 28 | 74005844 | Wire, Blue 20 | 10 |
|
$ 8.89 | ||||
| 28 | 74005842 | Wire, Violet 15 | 10 |
|
- | ||||
| 28 | 74005841 | Wire, Yellow 18 | 10 |
|
$ 14.44 | ||||
| 29 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 29 | 16008409 | Cookbook----na | 10 |
|
- | ||||
| 29 | EC001-00 | Manual, Service | 10 |
|
- | ||||
| 30 | 74005526 | Manual, Use & Care | 10 |
|
- |
