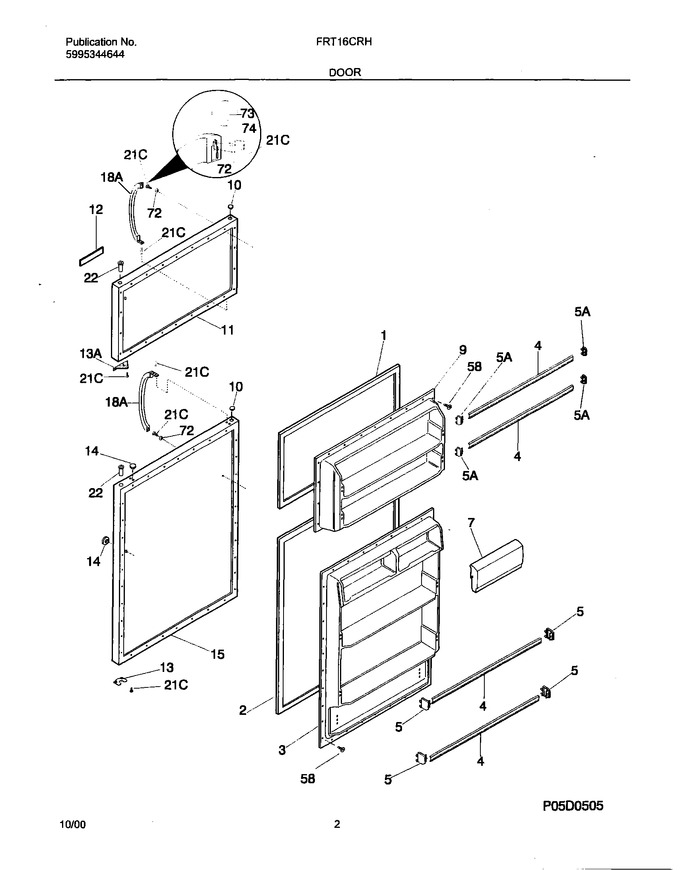

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 218359001 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366002 | Rack-door,22.20`` X 1.62`` (Replaces: 218027017) |
|
Immediately | $ 65.83 | ||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 218287801 | Door-dairy |
|
$ 41.48 | |||||
| 9 | 218358801 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Button, Plug, Almd |
|
- | |||||
| 11 | 5303917804 | Panel-frzr Door, Almond, W/insulation |
|
- | |||||
| 12 | 218917602 | Label-nameplate,almond |
|
- | |||||
| 13 | 218800300 | Door Stop,plated |
|
- | |||||
| 14 | 218915702 | Plug-button,almond |
|
- | |||||
| 15 | 5303917803 | Panel-refr Door, Almond, W/insul & Brace |
|
- | |||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 58 | 218781101 | Screw, Pan Head, No.8-18 X 5/8 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 13A | 218249002 | Door Stop, Almond, Frzr |
|
$ 47.88 | |||||
| 18A | 218428102 | Handle-door W/block And Screw, Almond |
|
- | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 5A | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| F1 | 5308007123 | Gasket-freezer |
|
$ 188.54 | |||||
| F2 | 218730603 | Gasket-refrigerator (Replaces: 5318680311) |
|
$ 62.07 | |||||
| NI | 5303917276 | Instulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
