SELECT A DIAGRAM

01 - Cover


03 - Door

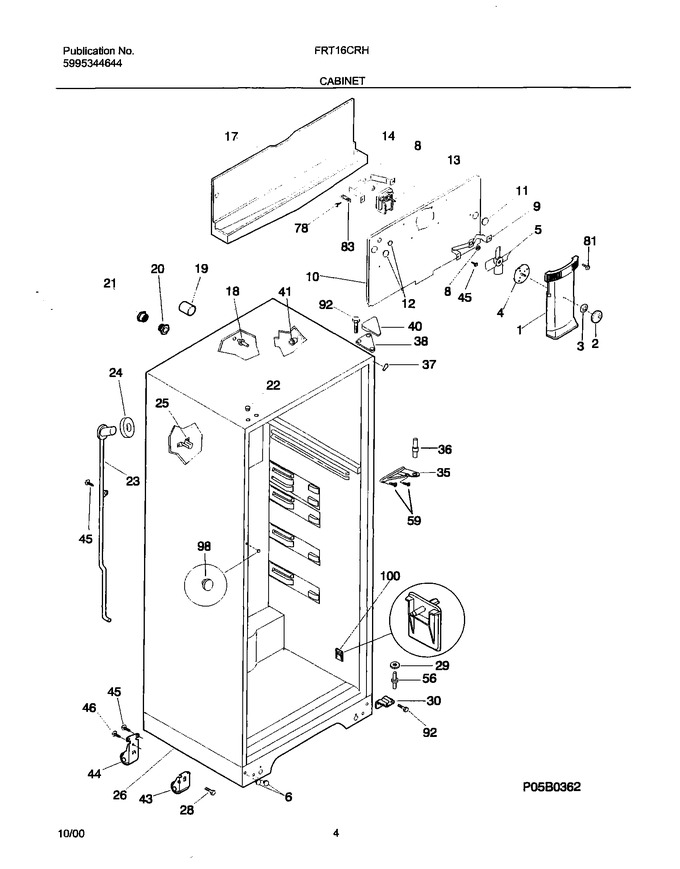

05 - Cabinet


07 - Shelves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218672501		Cover-fan		Appelez-nous	-
2	5303307351		Knob, Damper Control				$ 32.71
3	5303001028		Nut		Appelez-nous	-
4	218722200		Damper-fan Cover, Black				$ 59.80
6	5303001389		Button-hinge-almond		Appelez-nous	-
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket - Front		Appelez-nous	-
10	218829701		Cover-evap Coil		Appelez-nous	-
10	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
11	5303208309		Button Plug-short Test Hole (non-illustrated)				$ 45.50
12	215079100		Plug-wtr Inlet Tube, Round				$ 6.25
12	215079000		Plug-harness Hole, Round				$ 8.61
14	5303322992		Bracket-motor Mtg, Rear				$ 46.57
17	218725602		Trough-drain		Appelez-nous	-
18	215245000		Support - Evap Cover, (2)				$ 25.20
19	5303001198		Rubber Tube (2)		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	215774911		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303210377		Defrost Drain Tube & Ring Seal Assy				$ 109.31
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout - Drain Tube, W / Mtg Pins		Appelez-nous	-
26	218605002		Base-cabinet, Almond		Appelez-nous	-
28	5303271412		Bolt - Roller Adj, Indt Hex Head, 1/4 - 28 X 2-3/4, (2)				$ 37.64
29	218875801		Washer,nylon ,0.245 Id W/nibs				$ 9.40
29	218666700		Washer, .28 X .62 X .03, Nylon		Appelez-nous	-
30	218220203		Bracket-lower Hinge,zinc Chromate				$ 104.71
30	218605200		Tapping Plate/gusset,rh		Appelez-nous	-
30	218605300		Tapping Plate/gusset,lh		Appelez-nous	-
35	218998903		Bracket-ctr Hinge,almond   (Replaces: 218998902)				$ 11.13
36	218251300		Pin-center Hinge				$ 59.54
37	5303321082		Trim-cabinet Corner, Almond		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
40	3206105		Cover-top Hinge-almond				$ 60.90
41	5304509705		Gommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
41	5304500407		Gromment, Shelf Mtg, Lh, (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
43	5308009790		ú Spring-roller Adj				$ 4.30
43	218703001		Roller Assembly, Front, (2)				$ 58.41
43	5308011326		Washer, .34 X .62 X .02, Nylon				$ 9.87
44	218713600		Roller Assembly, Rear, (2)				$ 32.75
45	218754500		Screw, Hex Hd Ser Wshr, No.8-18 X 3/8, Wiring Cover , Drain Tube		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bclt-1/4-28 X 1/2 (2)		Appelez-nous	-
56	218220300		Pin-lower Hinge		Appelez-nous	-
59	240442708		Screw - Hinge / Mullion, No.10 - 32 X 5/8   (Replaces: 218188000)				$ 8.34
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button, Almond, Ctr Hinge Hole		Appelez-nous	-
100	5303288973		Support-crisper Cvr				$ 24.41
F13	5300158289		Motor-evap Fan   (Replaces: 218878701)			Immediately	$ 149.94
F5	5308000010		Fan Blade   (Replaces: 218649000)			Immediately	$ 49.03
NI	5308016571		Butter Plug Liner				$ 4.79
NI	218905701		Cover-sound Insul,pressboard/foam ,				$ 64.93
NI	5303305325		Almond (touch-up Paint)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
