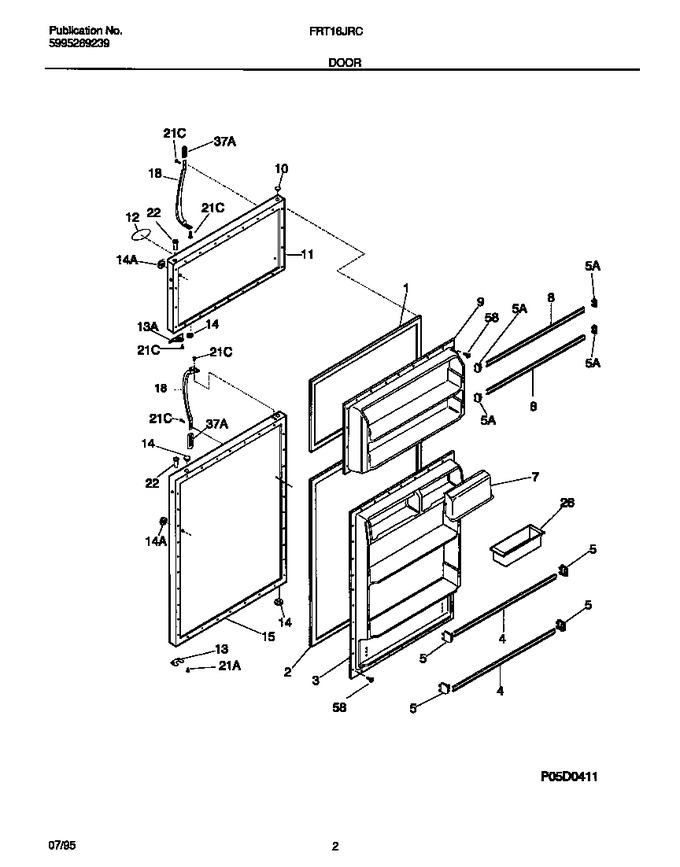

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288856		Gasket-frzr Door, Almond, Magnetic				$ 72.92
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, 19.20`` X 2.04``   (Replaces: 215516238)				$ 54.58
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
7	218287904		Door-dairy, 10.71`` Wide				$ 91.96
8	215516239		Rack-door, 20.66`` X 2.04``		Appelez-nous	-
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917599		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218364002		Frame-nameplate, Almond		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917597		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218363402		Handle-door, Almond, Hard-grip		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
*86240	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215008608		Label-nameplate, Almond, Frigidaire (not Illustrated)		Appelez-nous	-
12B	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
13A	218249002		Door Stop, Almond, Frzr				$ 47.88
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21C	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
37A	215870608		Trim-handle, 2.47``, Almond, W/chrome Band		Appelez-nous	-
5A	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39

    View Diagram in Separate Window       Print Part List
