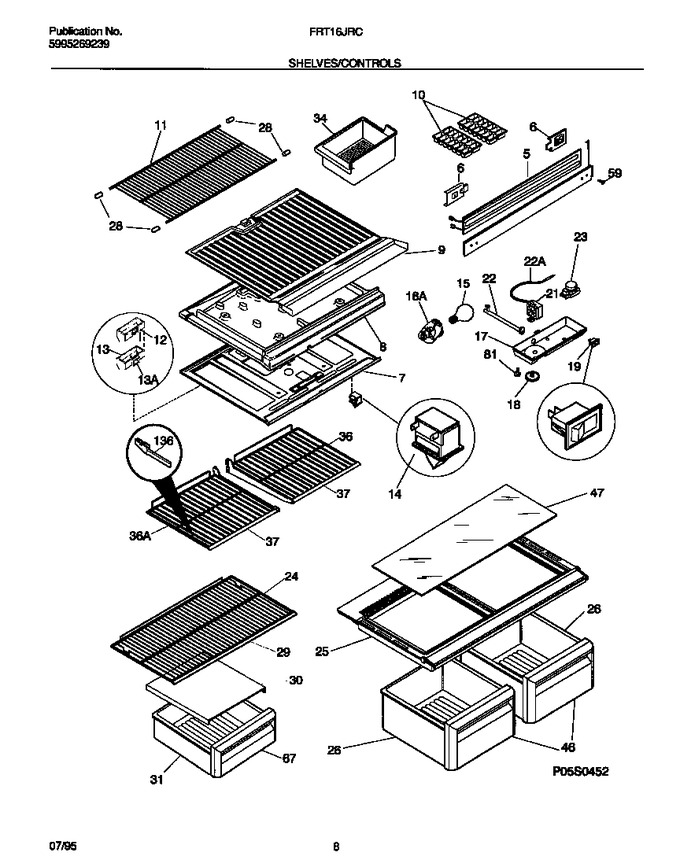

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218252502		Mullion, Almond		Appelez-nous	-
5	218271401		Heater-mullion				$ 135.66
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	3206185		Top Panel - Refr		Appelez-nous	-
8	3206186		Divider, Styrofoam		Appelez-nous	-
9	3206187		Bottom Panel - Frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303283107		Shelf-freezer, Fixed/flat, Full Width, Wire				$ 155.82
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303307349		Box, Control		Appelez-nous	-
18	5303307352		Knob, Temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5303305486		Control-temperature				$ 122.43
22	3018891		Housing-temp Sensor, Plastic		Appelez-nous	-
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
24	218272501		Shelf, Sliding, Wire		Appelez-nous	-
25	218314102		Cover-crisper Pan, With Beam				$ 221.99
26	3206180		Pan - Crisper				$ 155.70
28	3201150		End Cap-shelf,protector				$ 4.57
29	218366106		Trim-shelf, 23.28``, Front		Appelez-nous	-
30	5303285319		Cover-meat Pan				$ 100.13
31	3206209		Pan-meat				$ 183.70
34	5303212918		Container-ice				$ 104.66
36	218309901		Shelf, Half-cantilever, Half Width, Wire, Rh, Cantil On		Appelez-nous	-
37	218366120		Trim-shelf, 11.27``, Front		Appelez-nous	-
46	215357404		Front-crisper Pan		Appelez-nous	-
47	218390576		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
67	215359803		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
136	218553900		Stop Clip-shelf		Appelez-nous	-
11A	218159700		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
12A	5303001449		Seal, Air Deflector (not Illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
22A	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 60.96
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
36A	218309902		Shelf, Half-cantilever, Half Width, Wire, Lh, Cantil Onrs		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	3018900		Harness, Wiring, Control/divider (not Illustrated)		Appelez-nous	-
8B	3205266		Edge Protector, Wiring Harness (not Illustrated)				$ 80.09
