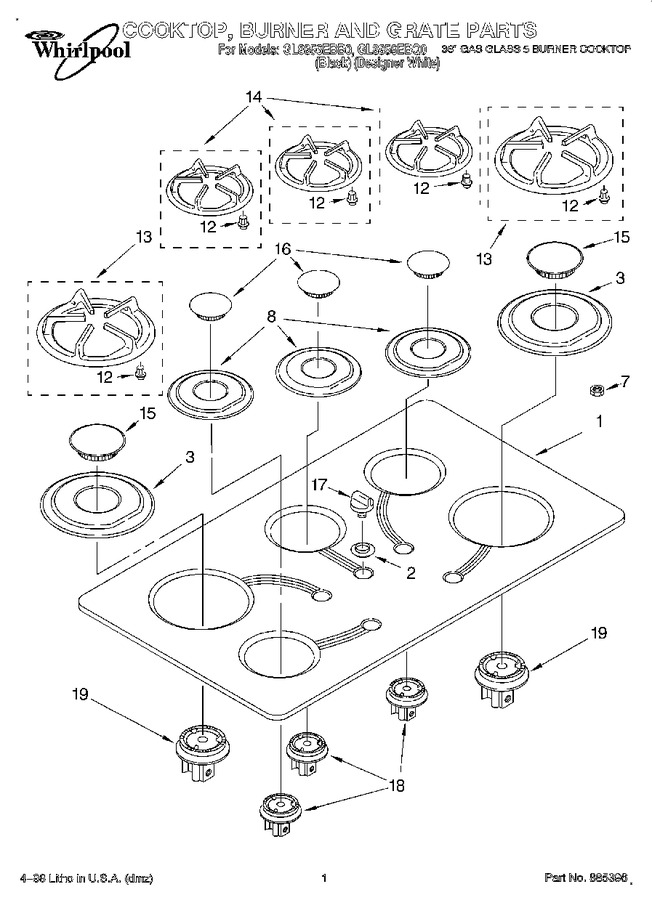

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191555 | Cooktop, Glass (black) |
|
- | |||||
| 1 | 3191556 | Cooktop, Glass (white) |
|
- | |||||
| 2 | WP3180081 | Grommet, Glass Cooktop (4) (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 2 | W10854242 | Grommet, Glass Cooktop (4) (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 3 | 4454597 | Bezel, Cooktop (large) (white) |
|
- | |||||
| 3 | 4454595 | Bezel, Cooktop (large) (black) |
|
- | |||||
| 7 | 3189021 | Speed Nut (15) |
|
- | |||||
| 8 | 4454600 | Bezel, Cooktop (small) (white) |
|
- | |||||
| 8 | 4454598 | Bezel, Cooktop (small) (black) |
|
- | |||||
| 12 | 814323 | Pad, Grate (includes 5 Pads) (Replaces: 3186678) |
|
Immediately | $ 10.28 | ||||
| 13 | 3186675 | Grate, Large (rf & Lr) (includes No. 12) (black) |
|
- | |||||
| 13 | 3186677 | Grate, Large (rf & Lr) (includes No. 12) (white) |
|
- | |||||
| 14 | 3186674 | Grate, Small (lf & Rr) (includes No. 12) (white Model) |
|
- | |||||
| 14 | 3186672 | Grate, Small (lf & Rr) (includes No. 12) (black Model) |
|
- | |||||
| 15 | 3185793 | Cap, Rapid Burner Large (2) (black) |
|
- | |||||
| 15 | 3185794 | Cap, Rapid Burner Large (2) (white) |
|
- | |||||
| 16 | 3185796 | Cap, Semi Rapid Small (2) (black) |
|
- | |||||
| 16 | 3185797 | Cap, Semi Rapid Small (2) (white) |
|
- | |||||
| 17 | 3191764 | Knob, Control (4) (white) |
|
- | |||||
| 17 | 3191763 | Knob, Control (4) (black) |
|
- | |||||
| 18 | 3188799 | Burner, Small (2) |
|
- | |||||
| 19 | 3188798 | Burner, Large (2) |
|
- |
