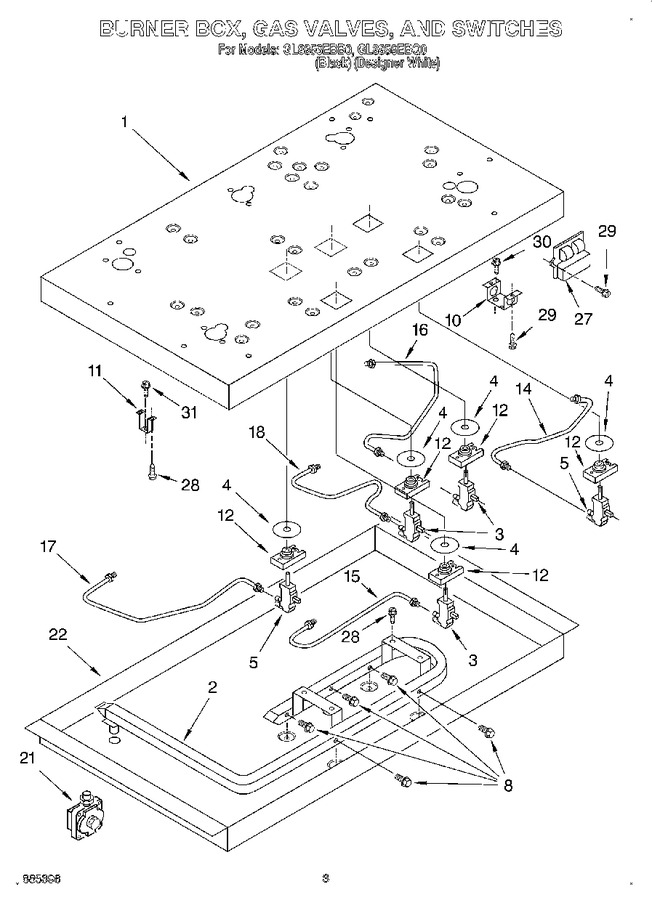

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3190396		Backer Plate		Appelez-nous	-
2	3190750		Pipe, Manifold		Appelez-nous	-
3	3185828		Valve, Gas Burner (lf, Rr, & Cr)		Appelez-nous	-
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	3185827		Valve, Gas Burner (rf & Lr)		Appelez-nous	-
8	3185829		Bolt (gas Valve)		Appelez-nous	-
10	4454647		Bracket, Burner (4)		Appelez-nous	-
11	3191098		Bracket, Burner Box (9)		Appelez-nous	-
11	WP3177991		Screw (18)   (Replaces: 3177991)			Immediately	$ 6.47
12	WP3190779		Switch, Gas Burner   (Replaces: 3190779)				$ 116.75
14	3189880		Tubing, Large Gas Burner (rf)		Appelez-nous	-
15	3189881		Tubing, Small Gas Burner (lf)		Appelez-nous	-
16	3189882		Tubing, Large Gas Gas Burner (rr)		Appelez-nous	-
17	3189883		Tubing, Small Gas Burner (lr)		Appelez-nous	-
18	3189884		Tubing, Small Burner (cr)		Appelez-nous	-
21	3177120		Regulator, Pressure		Appelez-nous	-
22	3190967		Burner Box		Appelez-nous	-
27	WPW10110486		Module Spark   (Replaces: 3190700)				$ 285.33
28	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
29	3148443		Screw		Appelez-nous	-
30	4454663		Screw		Appelez-nous	-
31	3148442		Screw		Appelez-nous	-
	LIT3191748		Installation Instructions		Appelez-nous	-
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	LIT3191129		Wiring Diagram		Appelez-nous	-
	LIT3191747		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
