Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP596669 Clamp, Hose   (Replaces: 353367) In-Stock Immediately $ 7.56

3 356349 Hose, Water Inlet Appelez-nous -
4 WP596669 Clamp, Hose   (Replaces: 353366) In-Stock Immediately $ 7.56

6 366072 Inlet, Water Appelez-nous -
7 355584 Flapper Appelez-nous -
9 381971 Ring, Tub (includes Illus. 44) Appelez-nous -
10 359757 Seal, Tub Ring Appelez-nous -
11 358404 Basket Appelez-nous -
12 96384 Block, Drive Special Order $ 32.89

13 W10814296 Gasket, Centerpost   (Replaces: 96690) In-Stock Immediately $ 8.26

14 359591 Tub Appelez-nous -
15 WP358237 Screw & Washer, Tub (4)   (Replaces: 370571) In-Stock Immediately $ 7.97

23 358431 Cap, Agitator Appelez-nous -
25 363633 Agitator Assembly Special Order $ 68.97

26 358440 Stud, Agitator Shaft Appelez-nous -
27 WP21366 Locknut   (Replaces: 21366) In-Stock Immediately $ 8.00

28 351830 Seal Special Order $ 5.84

29 360804 Air Dome Assembly Appelez-nous -
30 WP353244 Hose   (Replaces: 353405) In-Stock Immediately $ 53.94

35 359763 Clip, Tub Ring (4) Appelez-nous -
38 352818 Hose, Dispenser Appelez-nous -
40 WP596669 Clamp, Hose   (Replaces: 287859) In-Stock Immediately $ 7.56

44 355852 Plate, Snubber Appelez-nous -
45 88932 Dispenser, Rinse Appelez-nous -

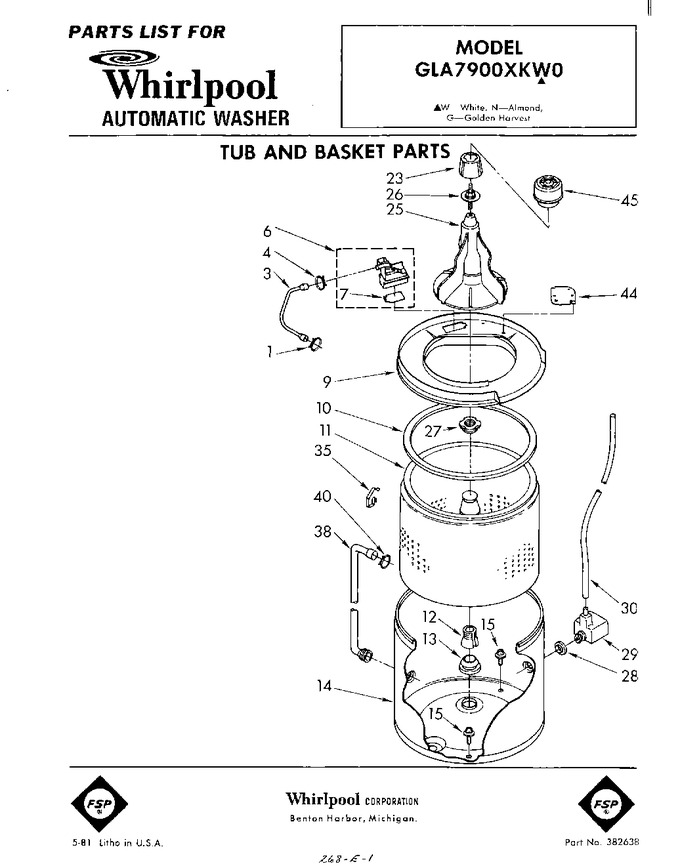

    View Diagram in Separate Window     Print Icon   Print Part List
