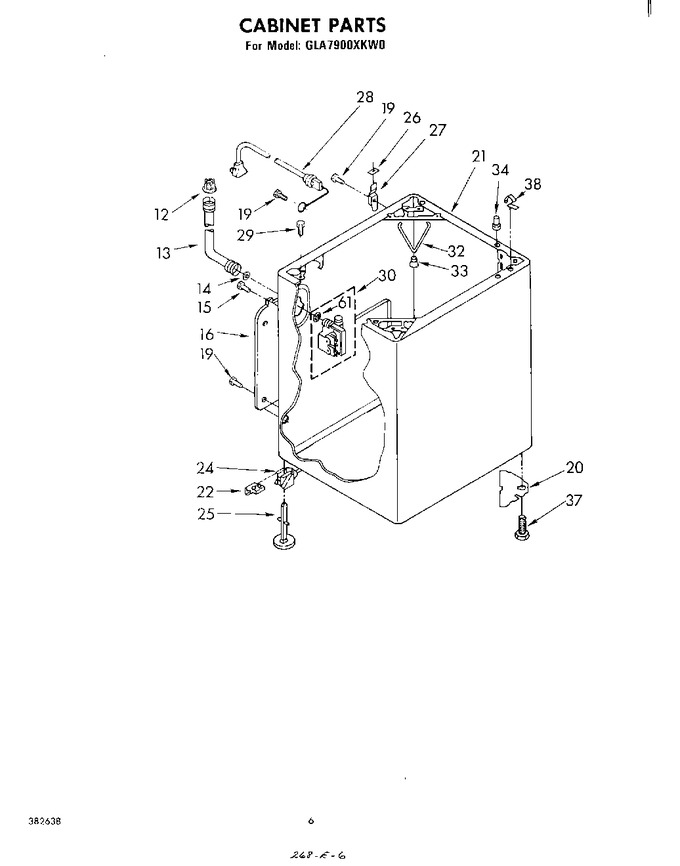

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	285452A		Screen, Filter   (Replaces: 355521)			Immediately	$ 8.31
13	WP89503		Hose, Inlet   (Replaces: 81339)			Immediately	$ 21.68
14	WP16123		Washer, Rubber   (Replaces: 16123)				$ 6.93
15	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
16	85279		Panel, Rear		Appelez-nous	-
19	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
20	356459		Plate, Gusset (2)		Appelez-nous	-
21	379101		Cabinet (white)		Appelez-nous	-
21	379105		Cabinet (golden Harvest)		Appelez-nous	-
21	379102		Cabinet (almond)		Appelez-nous	-
22	WP359364		Clip, Leveling Mechanism (2)   (Replaces: 359364)			Immediately	$ 7.06
24	359059		Link, Leveling		Appelez-nous	-
25	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
26	18849		Pad, Hinge				$ 18.13
27	92657		Hinge, L.h.		Appelez-nous	-
27	18775		Hinge, R.h.		Appelez-nous	-
28	92667		Cord, Power		Appelez-nous	-
29	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 7.07
30	358971		Valve, Mixing (alternate) (serviced Only As Complete Assemblies)		Appelez-nous	-
30	358277		Valve, Mixing (alternate)			Immediately	$ 78.87
32	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
33	358336		Snubber			Immediately	$ 4.80
34	98669		Locator, Top				$ 12.03
37	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
38	WP18776		Lock, Front Top   (Replaces: 18776)			Immediately	$ 11.41
61	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
