01 - Tub And Basket , Lit/optional


02 - Drive


03 - Pump


04 - Top And Console


05 - Cabinet


06 - Water System


07 - Gearcase


08 - Basket Drive And Brake

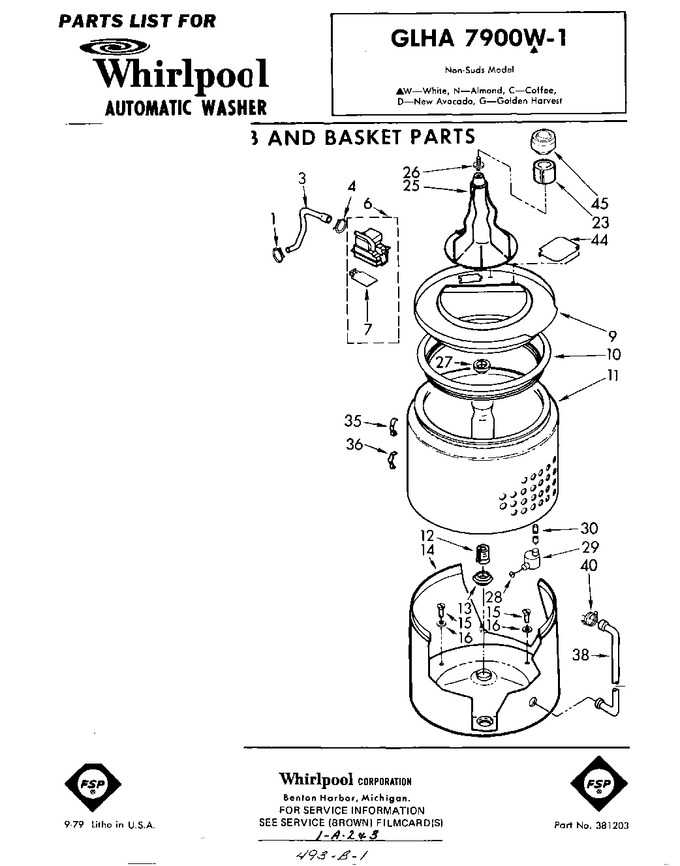

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 353367)			Immediately	$ 7.56
3	356349		Hose, Water Inlet		Appelez-nous	-
4	WP596669		Clamp, Hose   (Replaces: 353366)			Immediately	$ 7.56
6	366072		Inlet, Water		Appelez-nous	-
7	355584		Flapper		Appelez-nous	-
9	356039		Ring, Tub		Appelez-nous	-
10	355850		Seal, Tub Ring		Appelez-nous	-
11	358404		Basket		Appelez-nous	-
12	96384		Block, Drive				$ 32.89
13	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
14	360784		Tub		Appelez-nous	-
15	WP358237		Screw, Tub   (Replaces: 356973)			Immediately	$ 7.97
16	WP21365		Washer, Rubber   (Replaces: 21365)				$ 10.14
23	358431		Cap, Agitator		Appelez-nous	-
25	363633		Agitator Assembly				$ 68.97
26	358440		Stud, Agitator Shaft		Appelez-nous	-
27	WP21366		Locknut   (Replaces: 21366)			Immediately	$ 8.00
28	351830		Seal				$ 5.84
29	360804		Air Dome Assembly		Appelez-nous	-
30	WP353244		Hose   (Replaces: 353405)			Immediately	$ 53.94
35	356701		Clip, Tub Ring (3)		Appelez-nous	-
36	356700		Clip, Tub Ring (1)		Appelez-nous	-
38	352818		Hose, Dispenser		Appelez-nous	-
40	WP596669		Clamp, Hose   (Replaces: 287859)			Immediately	$ 7.56
44	355852		Plate, Snubber		Appelez-nous	-
45	381203		List, Repair Parts		Appelez-nous	-
45	380473		Instructions, Operating		Appelez-nous	-
45	378942		Instructions, Installation		Appelez-nous	-
45	358770		Guide, Laundry		Appelez-nous	-
45	88932		Dispenser, Rinse		Appelez-nous	-
45	359370		Harness, Console		Appelez-nous	-
45	358125		Harness, Cabinet		Appelez-nous	-
45	375962		Bag, Miscellaneous Parts		Appelez-nous	-
	299885		Wire, Splicing 240 Volt		Appelez-nous	-
