01 - Tub And Basket , Lit/optional
02 - Drive
03 - Pump
04 - Top And Console

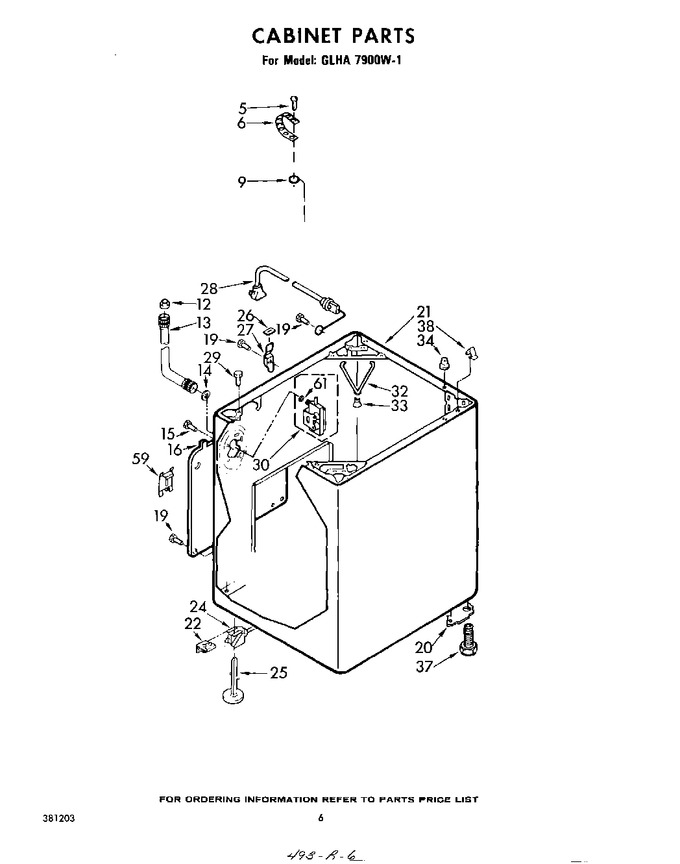

05 - Cabinet
06 - Water System
07 - Gearcase
08 - Basket Drive And Brake
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 132848 | Screw, 10-24 X 1 |
|
- | |||||
| 6 | 22965 | Strap, Ground |
|
- | |||||
| 9 | 364089 | Wire, Ground |
|
- | |||||
| 12 | 285452A | Screen, Filter (Replaces: 355521) |
|
Immediately | $ 8.31 | ||||
| 13 | WP89503 | Hose, Inlet (Replaces: 81339) |
|
Immediately | $ 21.68 | ||||
| 14 | WP16123 | Washer, Rubber (Replaces: 16123) |
|
$ 6.93 | |||||
| 15 | WP3351614 | Screw, 10 X 3/8 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 16 | 85279 | Panel, Rear |
|
- | |||||
| 19 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.07 | ||||
| 20 | 356459 | Plate, Gusset (2) |
|
- | |||||
| 21 | 379105 | Cabinet (golden Harvest) |
|
- | |||||
| 21 | 379101 | Cabinet (white) |
|
- | |||||
| 21 | 379102 | Cabinet (almond) |
|
- | |||||
| 21 | 379103 | Cabinet (coffee) |
|
- | |||||
| 21 | 379104 | Cabinet (new Avocado) |
|
- | |||||
| 22 | WP359364 | Clip, Leveling Mechanism (2) (Replaces: 359364) |
|
Immediately | $ 7.06 | ||||
| 24 | 359059 | Link, Leveling |
|
- | |||||
| 25 | WP358594 | Foot, Rear (2) (Replaces: 358594) |
|
$ 12.24 | |||||
| 26 | 18849 | Pad, Hinge |
|
$ 18.13 | |||||
| 27 | 18775 | Hinge, R.h. |
|
- | |||||
| 27 | 92657 | Hinge, L.h. |
|
- | |||||
| 28 | 92667 | Cord, Power |
|
- | |||||
| 29 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 359262) |
|
Immediately | $ 7.07 | ||||
| 30 | 358971 | Valve, Mixing (alternate) (serviced Only As Complete Assemblies) |
|
- | |||||
| 30 | 358277 | Valve, Mixing (alternate) |
|
Immediately | $ 78.87 | ||||
| 32 | 358336 | Spring, Snubber (Replaces: 357977) |
|
Immediately | $ 4.80 | ||||
| 33 | 358336 | Snubber |
|
Immediately | $ 4.80 | ||||
| 34 | 98669 | Locator, Top |
|
$ 12.03 | |||||
| 37 | WP367594 | Foot, Front (2) (Replaces: 367594) |
|
Immediately | $ 18.46 | ||||
| 38 | WP18776 | Lock, Front Top (Replaces: 18776) |
|
Immediately | $ 11.41 | ||||
| 59 | 354179 | Plug, Cabinet |
|
- | |||||
| 61 | 350941 | Leveler (thinner) |
|
- | |||||
| 61 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 61 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 61 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 61 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 61 | WP96160 | Screen, Filter (Replaces: 96160) |
|
$ 10.54 | |||||
| 61 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 61 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 61 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 61 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 61 | 261886 | Coffee |
|
- | |||||
| 61 | 261888 | New Avocado |
|
- | |||||
| 61 | 261890 | Golden Harvest |
|
- | |||||
| 61 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 261891 | Xgolden Harvest (uncut) |
|
- | ||||||
| 261889 | Xnew Avocado (uncut) |
|
- | ||||||
| 261887 | Xcoffee (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
