SELECT A DIAGRAM

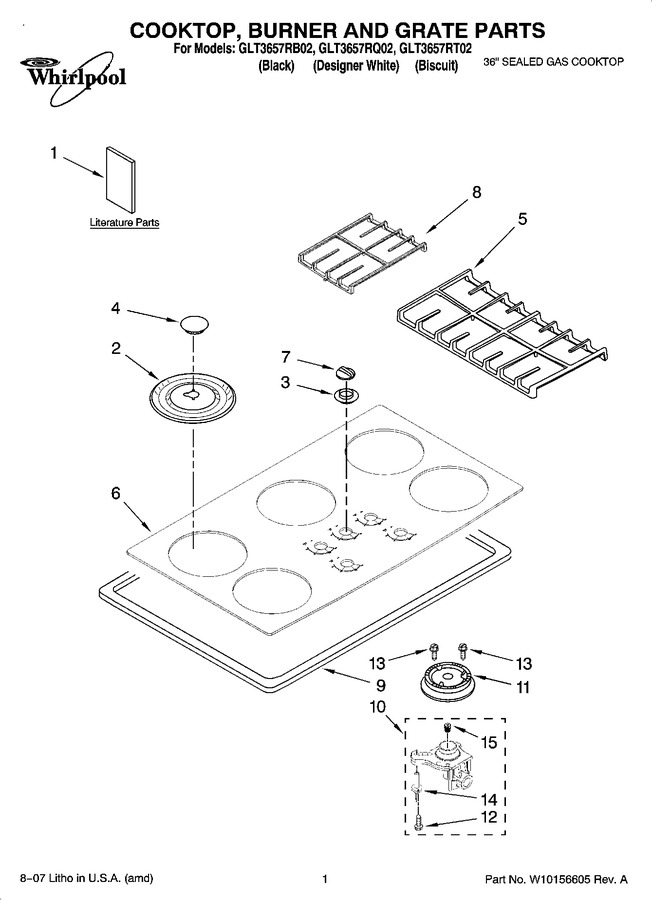

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9759133		Safe Cooking Tips (french)		Appelez-nous	-
1	W10131955		Installation Instructions		Appelez-nous	-
1	8286620		L.p. Conversion Instructions		Appelez-nous	-
1	W10086220		Use & Care Guide		Appelez-nous	-
1	3191638		Safe Cooking Tips (english)		Appelez-nous	-
2	3191819		Bowl, Burner 6k (rr, Lr) (biscuit)		Appelez-nous	-
2	3191307		Bowl, Burner 6k (rr, Lr) (black)		Appelez-nous	-
2	3191308		Bowl, Burner 6k (rr, Lr) (white)		Appelez-nous	-
2	3191302		Bowl, Burner 9k,12k (ctr, Rf, Lf) (black)		Appelez-nous	-
2	3191303		Bowl, Burner 9k,12k (ctr, Rf, Lf) (white)		Appelez-nous	-
2	3191818		Bowl, Burner 9k, 12k (ctr, Rf, Lf) (biscuit)		Appelez-nous	-
3	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 7.40
3	3191817		Grommet, Glass (biscuit)		Appelez-nous	-
3	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.58
4	WP8286153CG		Cap, Burner 6k (rr, Lr) (cumberland Gray)   (Replaces: 8286153CG)				$ 72.00
4	8286155EP		Cap, Burner 12.5k (lf, Rf) (espresso)		Appelez-nous	-
4	WP8286155CG		Cap, Burner 12.5k (lf, Rf) (cumberland Gray)   (Replaces: 8286155CG)				$ 89.27
4	8286153EP		Cap, Burner 6k (rr, Lr) (espresso)		Appelez-nous	-
4	WP8286154CB		Cap, Burner 9.5k (ctr) (coal Matte Black)   (Replaces: 8286154CB)				$ 77.94
4	WP8286154CG		Cap, Burner 9.5k (ctr) (cumberland Gray)   (Replaces: 8286154CG)				$ 86.04
4	8286154EP		Cap, Burner 9.5k (ctr) (espresso)		Appelez-nous	-
4	WP8286155CB		Cap, Burner 12.5k (lf, Rf) (coal Matte Black)   (Replaces: 8286155CB)				$ 104.70
4	WP8286153CB		Cap, Burner 6k (rr, Lr) (coal Matte Black)   (Replaces: 8286153CB)				$ 61.97
5	8285892CG		Grate Left (cumberland Gray)		Appelez-nous	-
5	8285894CG		Grate Right (cumberland Gray)		Appelez-nous	-
5	8285894CB		Grate Right (coal Matte Black)				$ 88.74
5	8285892EP		Grate Left (espresso)		Appelez-nous	-
5	8285894EP		Grate Right (espresso)		Appelez-nous	-
5	8285892CB		Grate Left (coal Matte Black)				$ 89.02
6	8286267		Cooktop, Glass (biscuit)		Appelez-nous	-
6	8286249		Cooktop, Glass (black)		Appelez-nous	-
6	8286264		Cooktop, Glass (white)		Appelez-nous	-
7	8286058WH		Knob, Control (4) (white)				$ 21.10
7	8286058BT		Knob, Control (4) (biscuit)		Appelez-nous	-
7	WP8286058BL		Knob, Control (4) (black)   (Replaces: 8286058BL)			Immediately	$ 22.04
8	8285891EP		Grate, Center (espresso)		Appelez-nous	-
8	8285891CB		Grate, Center (coal Matte Black)		Appelez-nous	-
8	8285891CG		Grate, Center (cumberland Gray)		Appelez-nous	-
9	3191933		Seal, Foam				$ 29.81
10	WPW10128451		Holder, Orifice (12k (lf, Rf))   (Replaces: W10128451)				$ 99.80
10	WPW10128450		Holder, Orifice (9k (ctr))   (Replaces: W10128450)				$ 106.59
10	WPW10128448		Holder, Orifice (6k (rr, Lr))   (Replaces: W10128448)			Immediately	$ 100.54
11	WPW10406283		Head, Burner (ctr)   (Replaces: 8286184)				$ 66.87
11	WPW10406797		Head, Burner (lf) (rf)   (Replaces: 8286182)				$ 79.64
11	WPW10406243		Head, Burner (rr) (lr)   (Replaces: 8286181)			Immediately	$ 33.50
12	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
13	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
14	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
15	8286551		Orifice (lf, Rf)				$ 89.96
15	WP3192523		Orifice (ctr)   (Replaces: 3192523)				$ 80.19
15	WP3192529		Orifice (rr, Lr)   (Replaces: 3192529)				$ 86.35
	4456627		Harness, Wire (ignitor 28``)				$ 189.13
	4456626		Harness, Wire Ignitor 15``				$ 66.34
	WP3400806		Screw (2)   (Replaces: 3400806)				$ 6.94
	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 6.47
