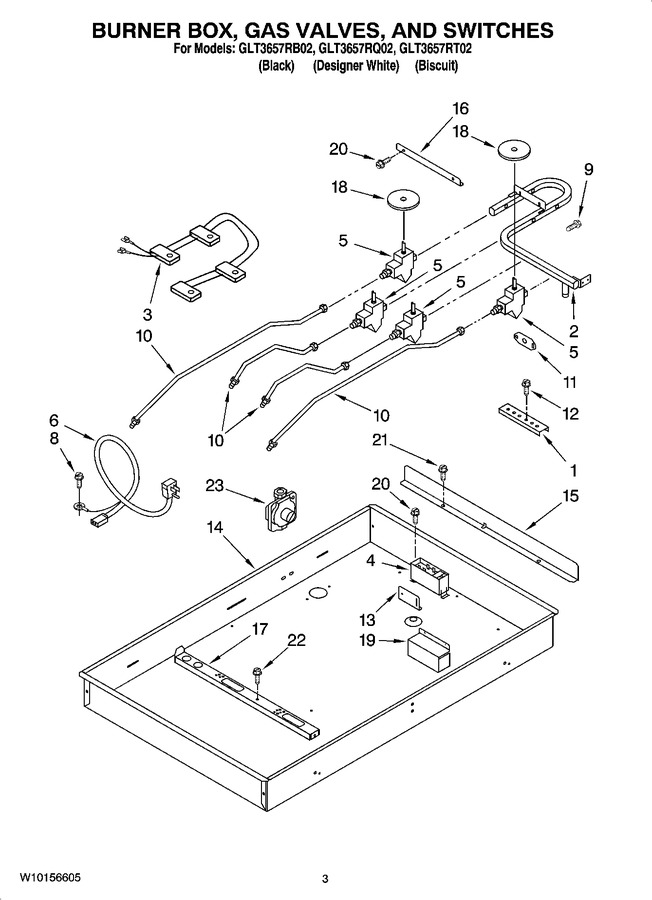

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8186533		Bracket, (2) Cooktop Mounting   (Replaces: 4455917)				$ 79.60
2	8285751		Pipe, Manifold				$ 306.05
2	W10491985		Screw (2)   (Replaces: 3196160)			Immediately	$ 6.47
3	WP4456901		Harness & Switches   (Replaces: 4456901)				$ 217.02
4	WPW10110491		Module, Spark   (Replaces: 8522423)			Immediately	$ 276.35
5	8286559		Valve, Burner (auxi (white))				$ 123.31
5	8286560		Valve, Burner (rapid (purple))				$ 123.39
5	WP4456817		Valve, Burner (large (2))   (Replaces: 4456817)				$ 286.38
6	W10392007		Power Cord   (Replaces: 9763116)				$ 96.25
8	WP3177991		Screw, Ground   (Replaces: 3177991)			Immediately	$ 6.47
9	8523704		Bolt, Gas Valve		Appelez-nous	-
10	8286404		Tubing, Burner (ctr)		Appelez-nous	-
10	8286405		Tubing, Burner (rr)		Appelez-nous	-
10	8286403		Tubing, Burner (lf)		Appelez-nous	-
10	8286253		Tubing, Burner (lr)		Appelez-nous	-
10	8286406		Tubing, Burner (rf)		Appelez-nous	-
11	3192491		Bracket, Manifold		Appelez-nous	-
12	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
13	4455837		Bracket, Spark Module				$ 70.10
14	8286248		Box, Burner		Appelez-nous	-
15	3191462		Shield, Heat		Appelez-nous	-
16	9759145		Bracket, Support				$ 26.15
17	8285791		Rail, Center		Appelez-nous	-
17	W10203756		Rail, Burner   (Replaces: 8286099)		Appelez-nous	-
18	WP3188425		Seal, (4) Switch Cover   (Replaces: 3191387)				$ 82.61
19	8285789		Shield, Heat				$ 154.04
20	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
21	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
22	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
23	8285402		Harness, Ground Jumper		Appelez-nous	-
23	WP8286320		Spud Kit   (Replaces: 8286320)				$ 115.78
23	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 283.08

    View Diagram in Separate Window       Print Part List
