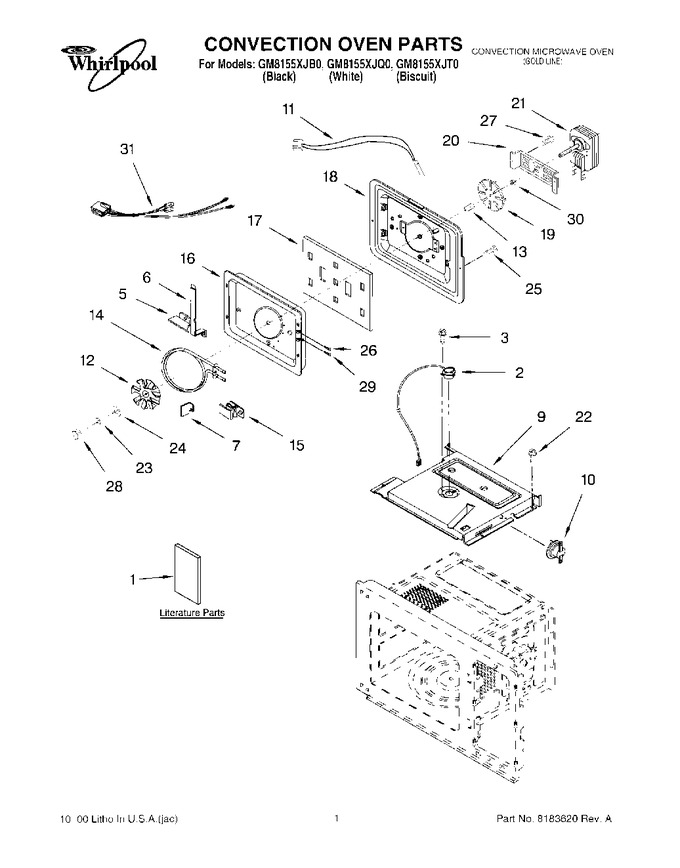

01 - Convection Oven, Literature
02 - Oven Interior
03 - Oven Cavity
04 - Base Plate
05 - Latch Board
06 - Control Panel
07 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8172190 | Literature Parts (u & C Guide) |
|
- | |||||
| 1 | LIT8172214 | Literature Parts (tech Sheet Cooking Guide) |
|
- | |||||
| 1 | LIT8172205 | Literature Parts (english) |
|
- | |||||
| 1 | LIT8172222 | Literature Parts (spanish) |
|
- | |||||
| 1 | LIT8172219 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8172220 | Literature Parts (template, B/i Kit) |
|
- | |||||
| 2 | 8171878 | Sensor |
|
- | |||||
| 3 | 4358450 | Screw |
|
- | |||||
| 5 | 8183575 | Bracket, Center |
|
- | |||||
| 6 | 8183574 | Bracket, Left |
|
- | |||||
| 7 | 8183576 | Bracket, Lower |
|
- | |||||
| 9 | 8183580 | Insulator |
|
- | |||||
| 10 | 8183593 | Thermostat |
|
- | |||||
| 11 | 8183583 | Thermistor |
|
- | |||||
| 12 | 8183582 | Fan |
|
- | |||||
| 13 | 4358460 | Bushing |
|
- | |||||
| 14 | 8183581 | Convection Element |
|
- | |||||
| 15 | 8183577 | Clip, Conv Element |
|
- | |||||
| 16 | 8183567 | Duct, Magnetron |
|
- | |||||
| 17 | 4358464 | Insulation |
|
- | |||||
| 18 | 8183566 | Shield, Back Insul |
|
- | |||||
| 19 | 4358466 | Fan Blade |
|
- | |||||
| 20 | 4358467 | Bracket, Convection Motor |
|
- | |||||
| 21 | 8183565 | Convection Motor |
|
- | |||||
| 22 | 4358192 | Screw |
|
- | |||||
| 23 | WP8533914 | Washer (Replaces: 4358477) |
|
Immediately | $ 4.04 | ||||
| 24 | 4358478 | Washer |
|
- | |||||
| 25 | W11245710 | Screw (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 26 | 8183572 | Screw |
|
- | |||||
| 27 | 4358380 | Screw |
|
$ 11.75 | |||||
| 28 | 4358476 | Nut |
|
- | |||||
| 29 | 8183564 | Screw |
|
- | |||||
| 30 | 4358475 | Nut |
|
- | |||||
| 31 | MK1150XJS | Trim Kits (30`` Stainless) |
|
- | |||||
| 31 | MK1157XJS | Trim Kits (27`` Stainless) |
|
- | |||||
| 31 | MK1150XJB | Trim Kits (30`` Black) |
|
- | |||||
| 31 | MK1150XJQ | Trim Kits (30`` White) |
|
- | |||||
| 31 | MK1150XJT | Trim Kits (30`` Biscuit) |
|
- | |||||
| 31 | 8183591 | Harness, Wire |
|
- | |||||
| 31 | MK1157XJB | Trim Kits (27`` Black) |
|
- | |||||
| 31 | MK1157XJQ | Trim Kits (27`` White) |
|
- | |||||
| 31 | MK1157XJT | Trim Kits (27`` Biscuit) |
|
- |
